12" walking stick with LED Lense
1-Way | 12" Slimline Walking Stick Font – Stylish and Practical Drinks Dispensing
Optional recirculation for temperature control
Keep the slim walking stick profile with the added benefit of a recirculation option. When connected to a suitable chilled recirculation system, the recirculating configuration helps maintain beer temperature within the font, reducing warming between pours and supporting a consistently chilled serve.
Suitable for 0.0% alcohol products
The recirculating configuration is also suitable for dispensing 0.0% alcohol beer and other compatible draught products when installed with an appropriate chilled dispense system. Choose the cooling, dispense settings and cleaning regime specified by the drinks supplier; the font's recirculation feature supports temperature control as part of that complete system.
Select the recirculating version: choose TTB - 3/16 - Recirc or Clamp on - 3/16 - Recirc. Recirculation is an optional configuration and is not included with the standard non-recirculating versions.
LED illuminated beer badge holder
This walking stick font features an LED illuminated badge holder that lights up your beer branding, helping it catch customers' attention and stand out across the bar, particularly in subdued lighting.
For a simple display without illumination, our round and oval lollipop versions use a shaped metal plate onto which the beer badge is stuck. Choose the LED version when an illuminated brand display is a priority, or a lollipop version for a straightforward, unilluminated badge display.
12" walking stick body dimensions
| Measurement | Dimension |
|---|---|
| Bottom of tube to outlet centreline | 270 mm |
| Horizontal reach, tube centreline to outlet end | 70 mm |
| Tube outside diameter | 30 mm |
| Bend centreline radius | 45 mm |
| Tube wall thickness | 1.5 mm |
| Internal threads at both ends | M28 × 1 |
| Threaded depth at each end | 9.5 mm |
Dimensions refer to the walking stick tube shown in the technical drawing. They exclude the badge holder, tap and mounting base or clamp, and are not the overall installed height. The 12" designation is the product size name.
Lead time, warranty and finish care
Lead time: up to 12 working days.
Warranty: 1 year, subject to our terms and conditions. Damage to plating caused by abrasive cleaners or abrasive cleaning materials is not covered.
Finish care: do not use abrasive cleaners or abrasive cleaning materials on plated finishes.
The 12" Slimline Walking Stick Font offers a sleek design with reliable performance, perfect for any bar setup.
- Elegant Design: Its slim, curved profile creates a clean presentation on the bar.

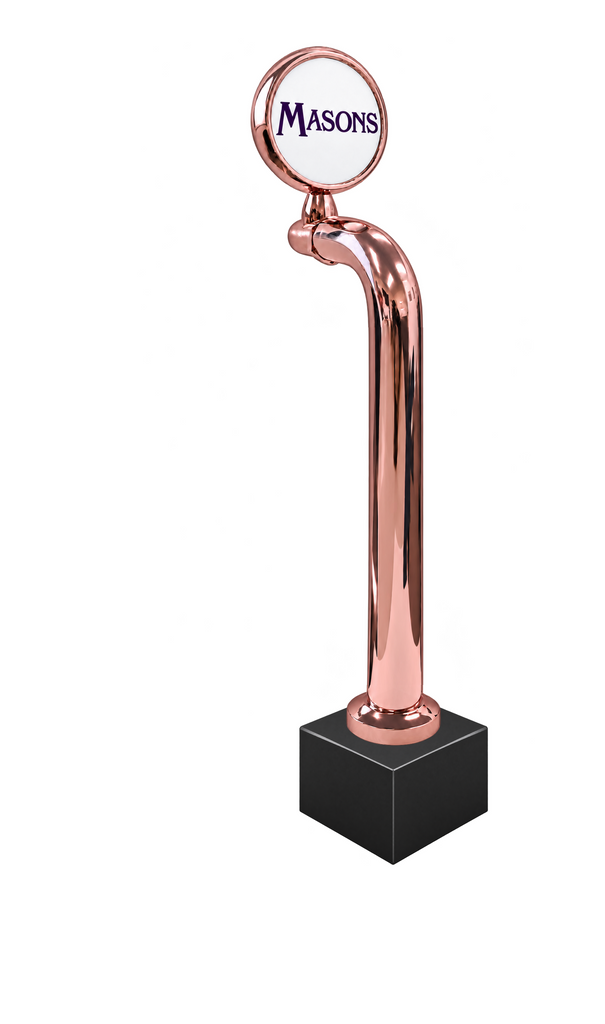

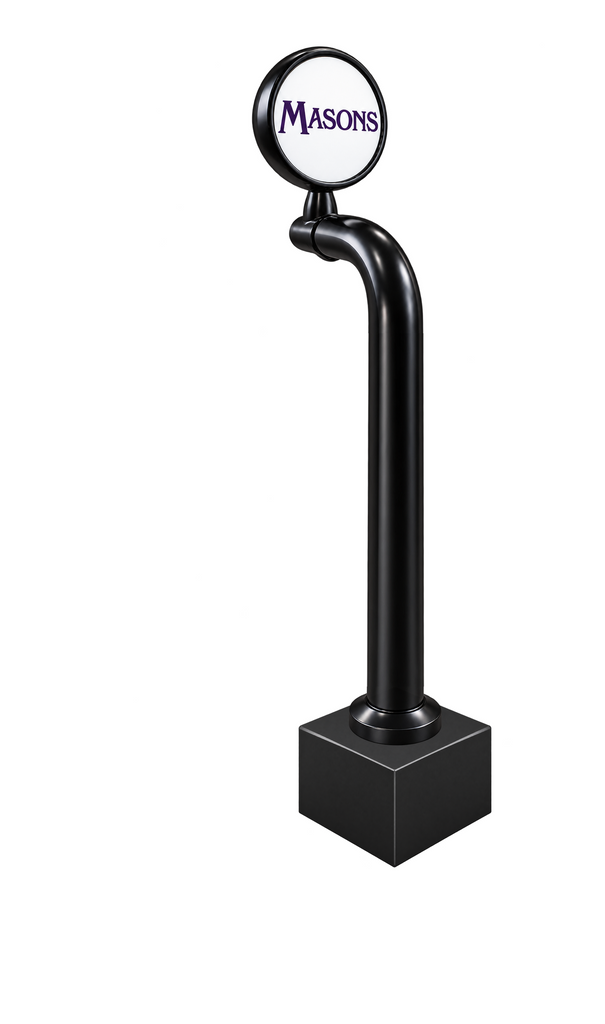

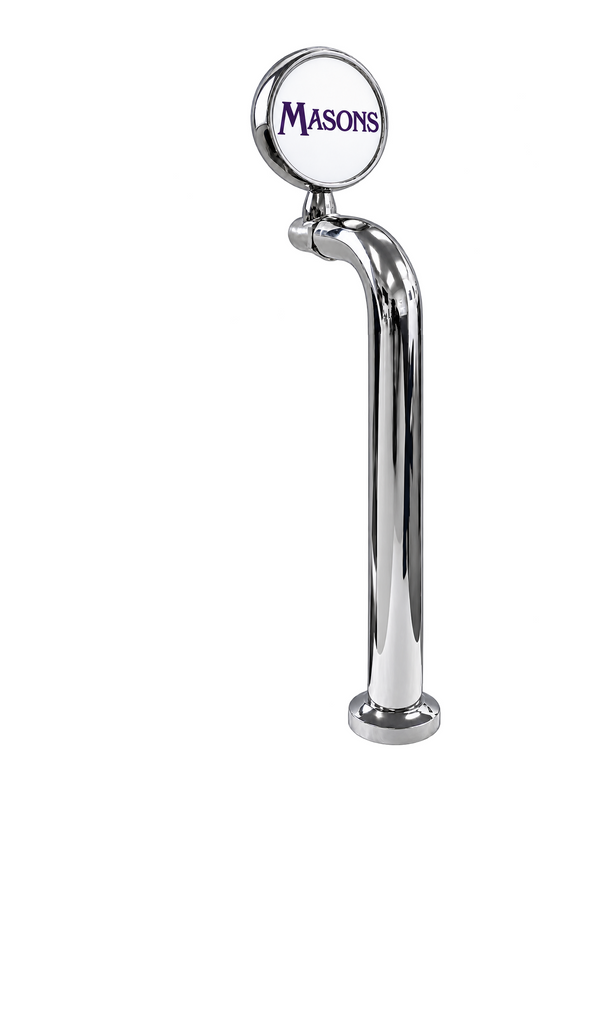

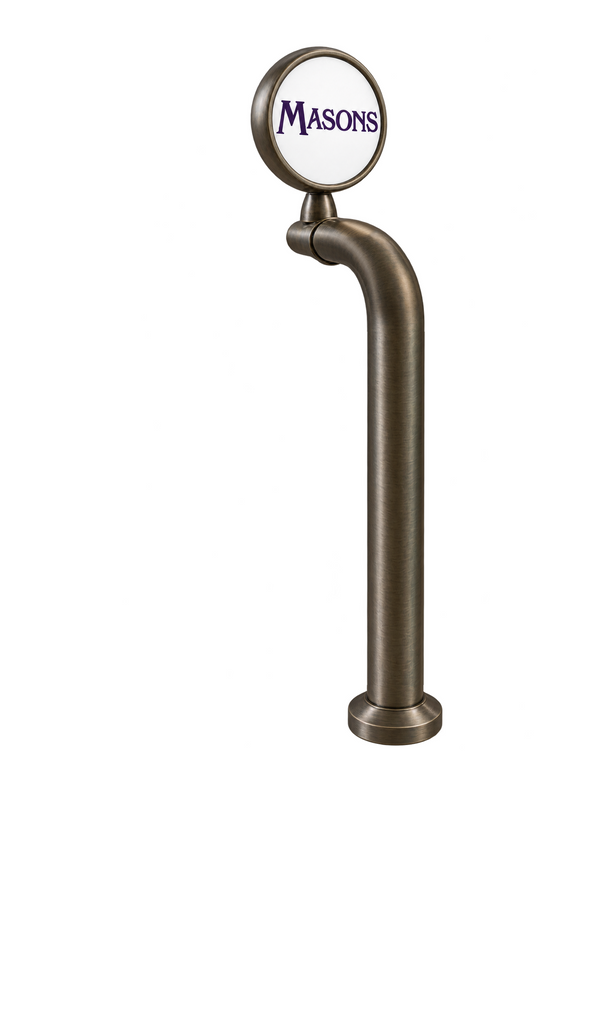

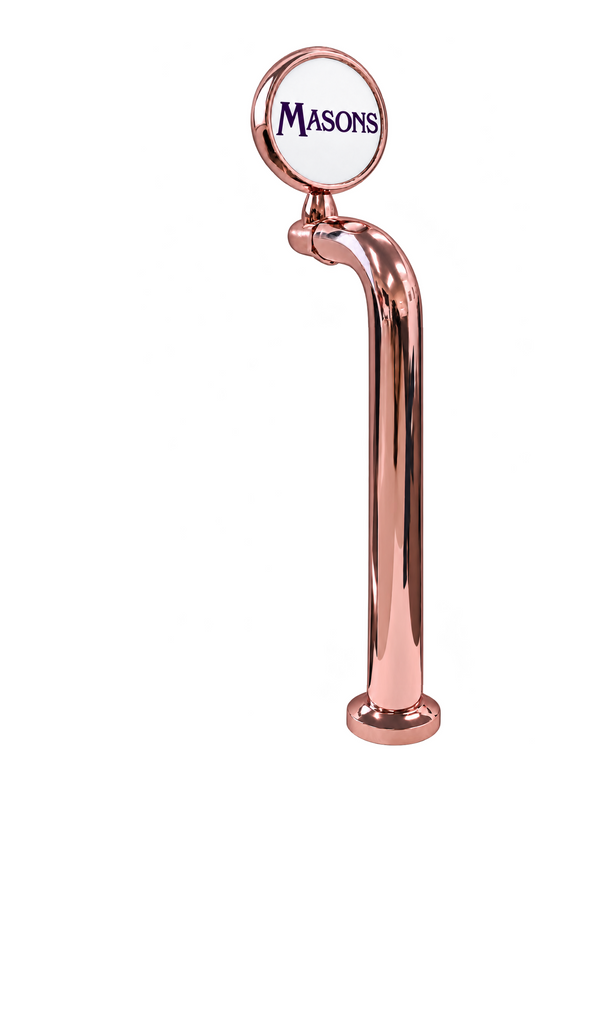

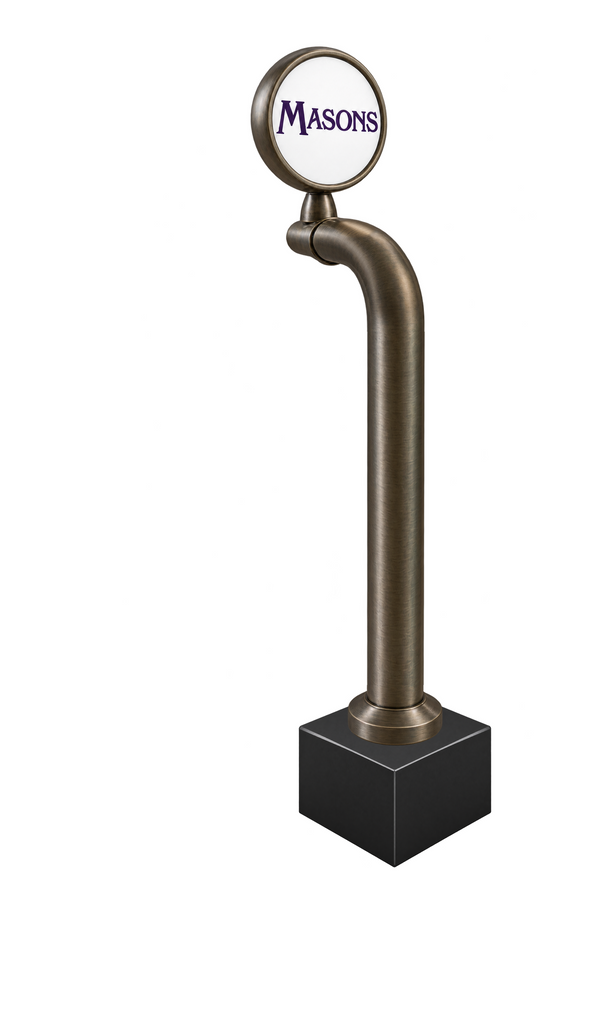

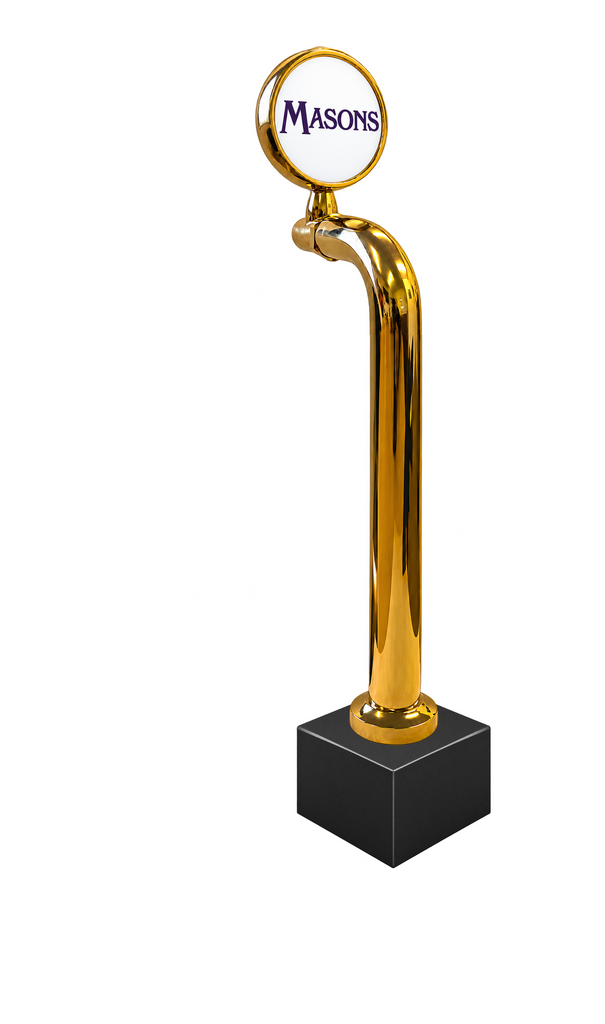

- Finish Options: Available in four different finishes, with custom options also offered to match your style.
- Mounting Options: Choose from Through-the-Counter or Clamp-On versions to suit your needs.
- Durable Build: Designed for long-lasting performance with a clean and professional look.
- Drip Tray Included: Helps maintain a tidy serving area.
- Recirculation: Choose TTB - 3/16 - Recirc or Clamp on - 3/16 - Recirc for the recirculating configuration.
A great choice for those looking for a dependable and stylish beer dispensing font.
