Brewhouse Bridge 5-Way Beer Font & Drinks Tower
The Brewhouse Bridge 5-Way Beer Font is a 5-tap bridge font with a choice of finishes, mounting arrangements and taps.
Lead time, warranty and finish care
Lead time: up to 12 working days.
Warranty: 1 year, subject to our terms and conditions. Damage to plating caused by abrasive cleaners or abrasive cleaning materials is not covered.
Finish care: do not use abrasive cleaners or abrasive cleaning materials on plated finishes.
Designed and manufactured by Harry Mason for beer, cider and other beverage dispense, the Brewhouse Bridge pairs an industrial appearance with interchangeable branding lenses.
Configure your 5-way bridge
Select your finish, mounting and beer-line size, then choose the tap option for your installation.
| Specification | Available options |
|---|---|
| Dispense outlets | 5 |

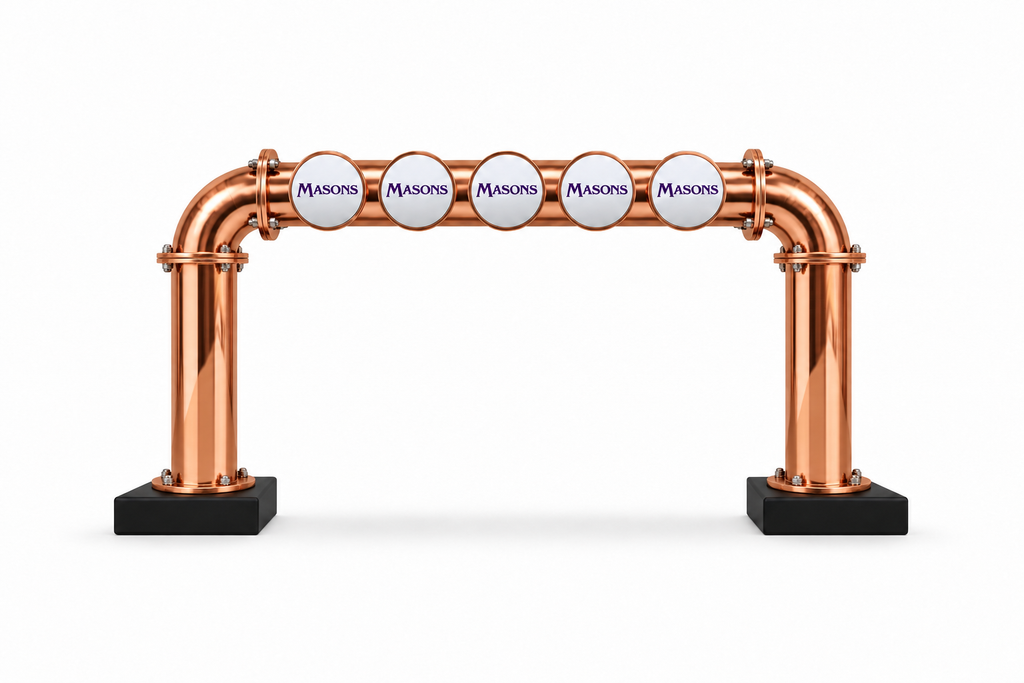

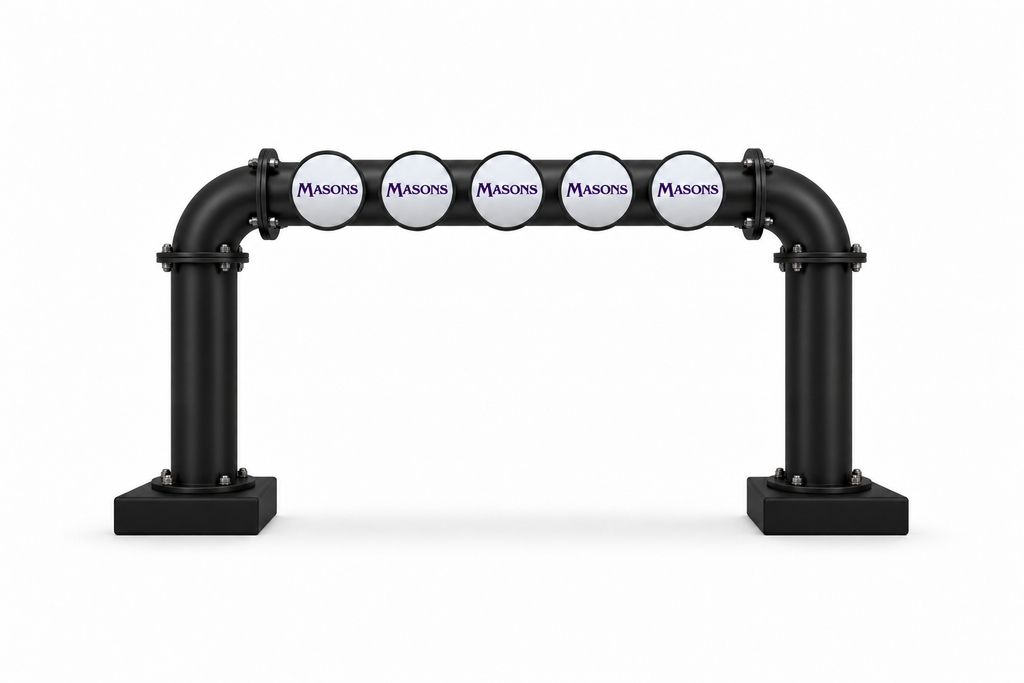

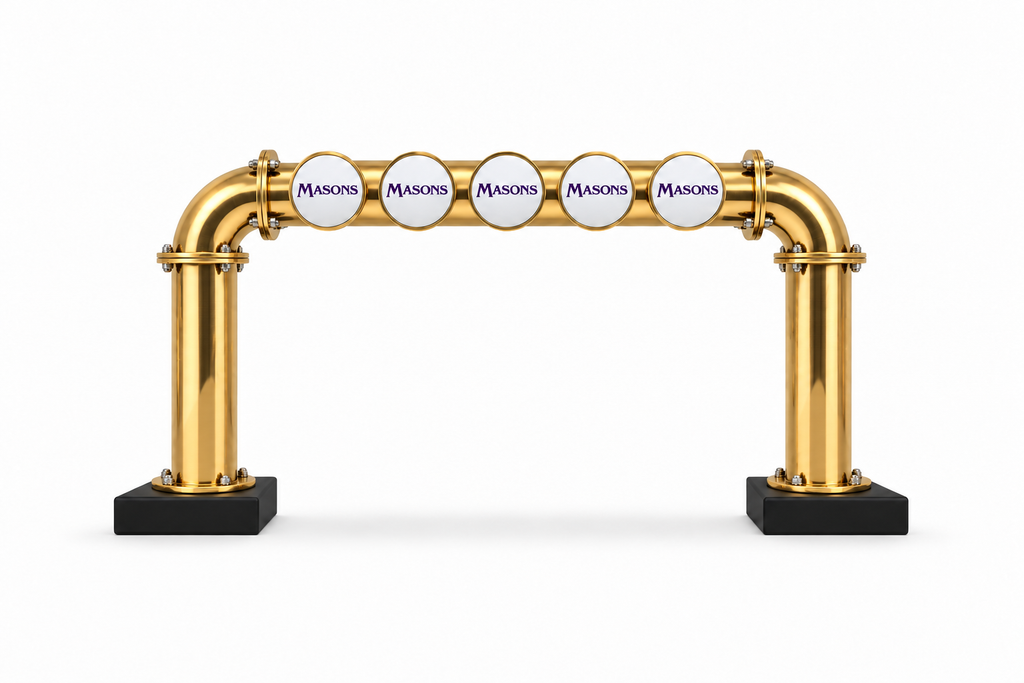

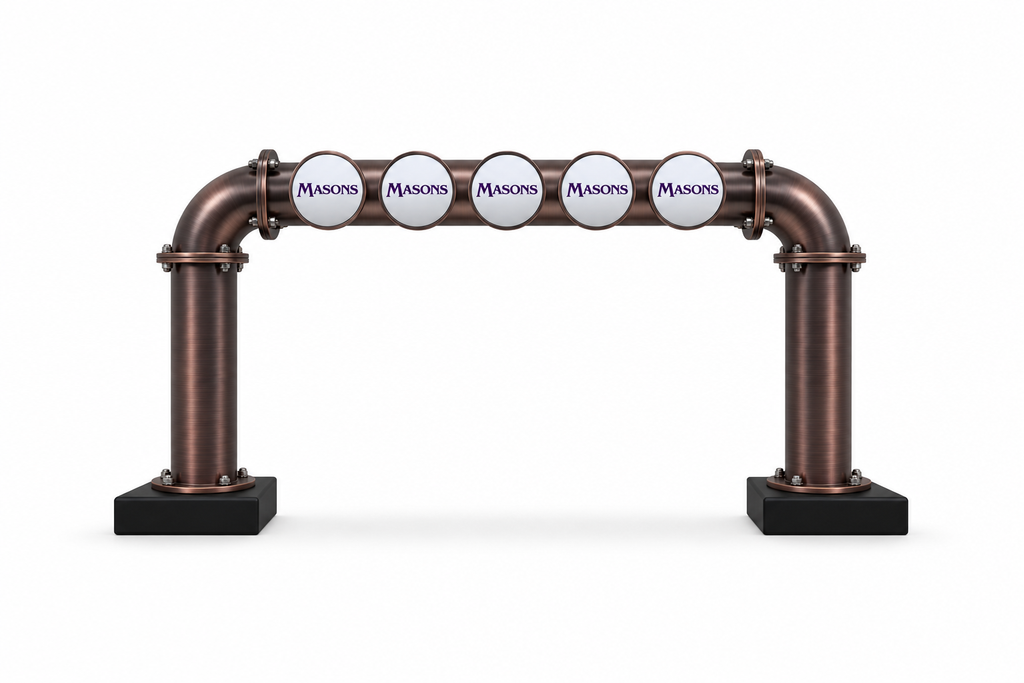

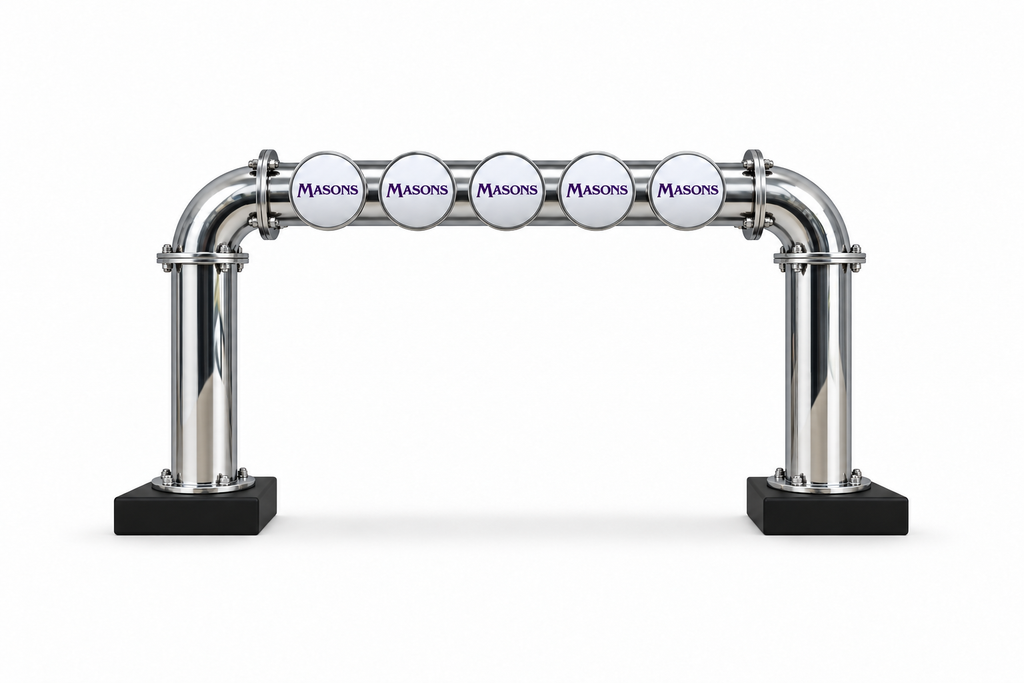

| Finish | Chrome, Gold/ Brass, Copper, Antique Brass, Antique Copper / Bronze, Black |

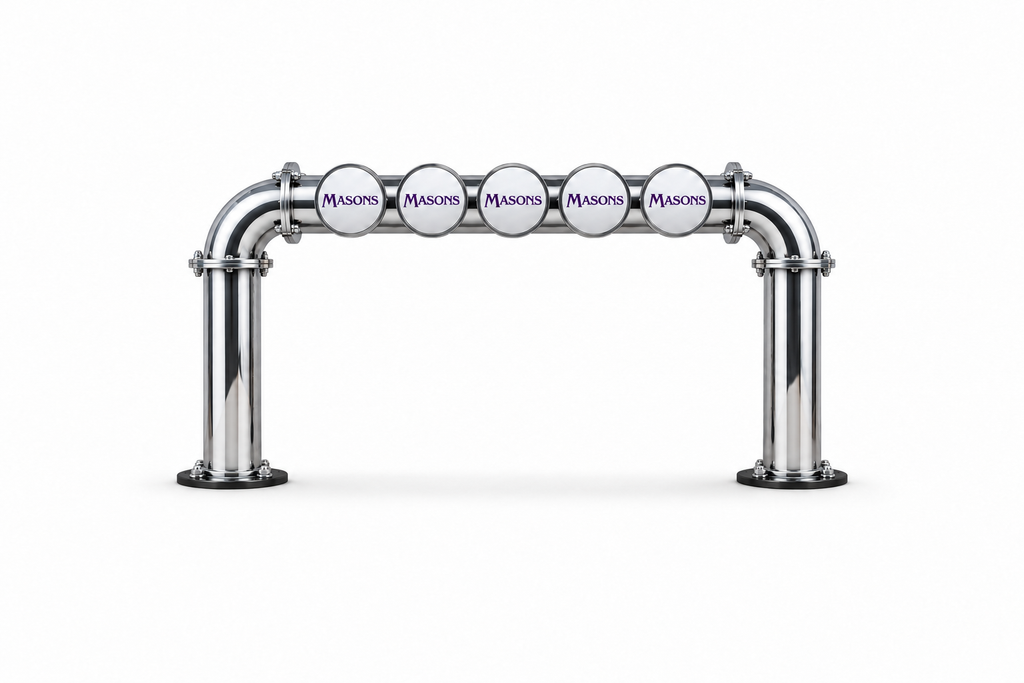

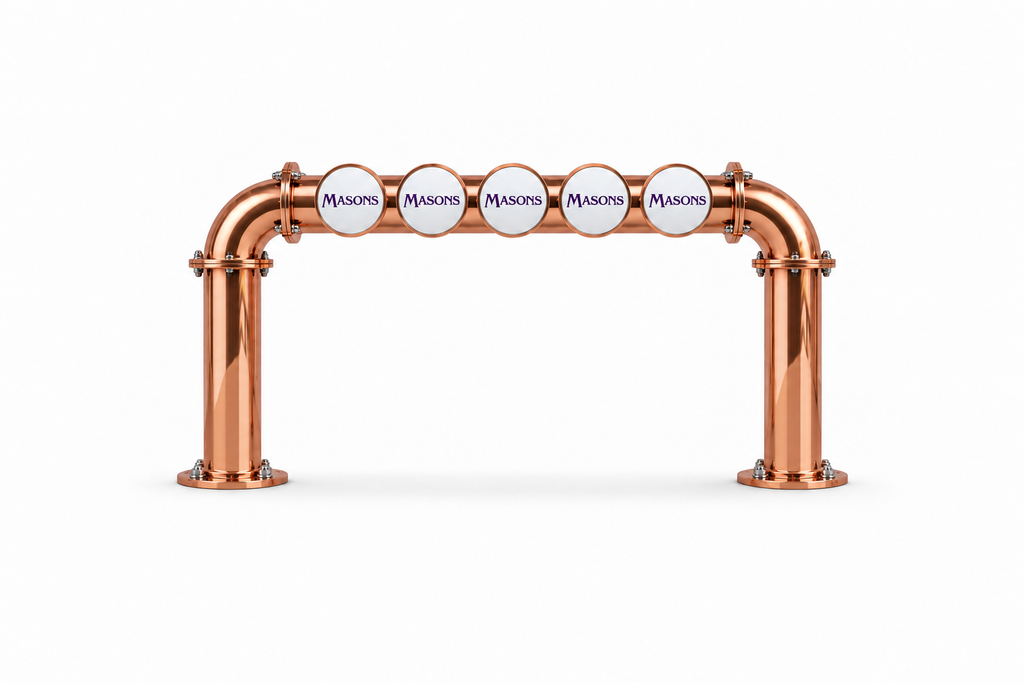

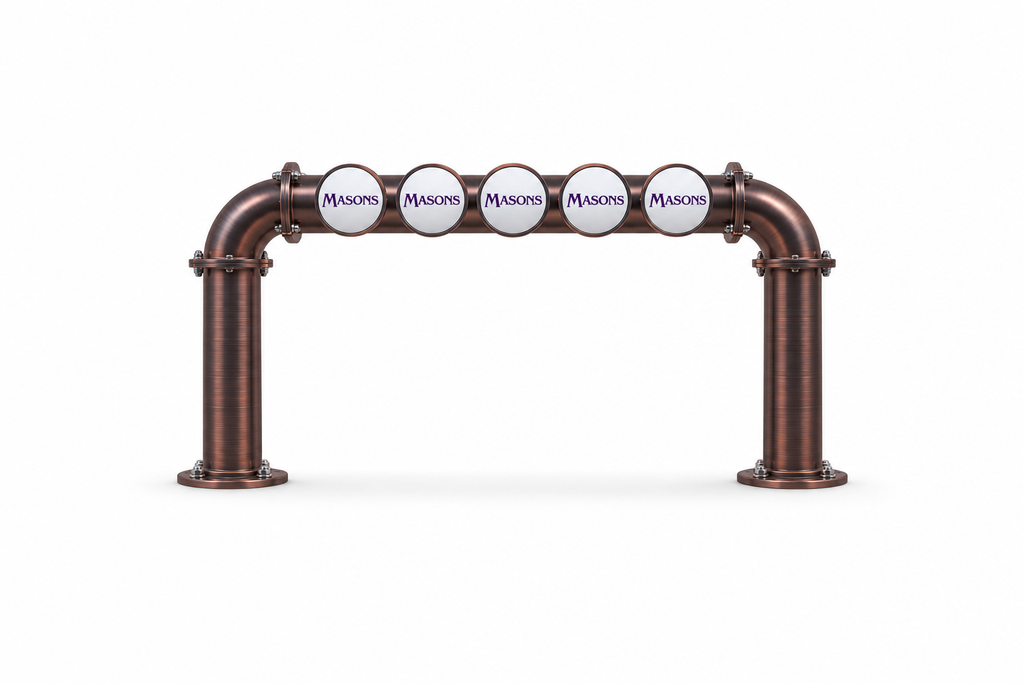

| Mounting | Through the bar or clamp on |
| Beer-line size | 3/16-inch or 5/16-inch, selected within the mounting option |
| Tap | Prestige Classic Tap Matching Handle; Compensator with Nozzle; or Compensator Tap |
| Branding | Round illuminated badge holders with interchangeable lenses |
Choosing the right configuration
- Finish: select the colour that suits your bar. Contact Harry Mason about custom plating.
- Mounting: choose through-the-bar or clamp-on mounting to suit your counter and installation.
- Beer line: select the 3/16-inch or 5/16-inch option to match your dispense setup.
- Taps: select your preferred tap option from the product selector. Ask us if you need help matching taps to your dispense system.
5-way Brewhouse Bridge dimensions
Overall widths are confirmed by Harry Mason. Shared dimensions are consistent across the Brewhouse Bridge range. All dimensions are in millimetres.
Download dimensions
Download 5-way Brewhouse Bridge dimensions (PDF)
Two-page dimension reference with separate clamp-on and through-the-bar specifications.
| Dimension | Clamp on | Through the bar |
|---|---|---|
| Overall width, including clamps where fitted | 885 mm | 840 mm |
| Bridge body height, measured from support base flange | 396 mm | 396 mm |
| Vertical support centre spacing | 725 mm | 725 mm |
| Clear gap between vertical supports | 610 mm | 610 mm |
| Dispense outlet centre spacing | 100 mm | 100 mm |
| Upright tube diameter | 76 mm | 76 mm |
| Support base flange diameter | 115 mm | 115 mm |
| Outlet thread | G 1/2-inch | G 1/2-inch |
| Support base above bar surface | 50 mm | At mounting surface |
| Clamp block width | 160 mm | Not applicable |
| Clamp projection below bar surface | 97 mm | Not applicable |
| Clamp engagement onto bar | 84 mm | Not applicable |
| Drip tray projection from bar edge | 210 mm | 210 mm |
Mounting and installation
The 396 mm body height is measured from the support base flange and excludes tap handles and clamp blocks. The 97 mm below-bar projection is a clearance measurement, not the maximum countertop thickness. The 115 mm flange diameter is not a drilling-hole specification. Confirm fixing details and countertop suitability before installation.
What is included?
- Drip tray.
- Insulated python with water recirculation lines, supplied as standard.
- Illuminated badges with LED wiring.
- A transformer with a UK three-pin plug for connecting the LED wiring.
Select your finish, mounting, beer-line size and tap option when ordering. Contact Harry Mason to discuss custom branded lenses and artwork.
Branding and installation
The round illuminated badge holders support custom branded lenses. Contact Harry Mason to discuss your artwork and branding requirements.
Before ordering, confirm the overall dimensions, mounting clearances and required fittings for your bar. For a project deadline, ask us to confirm availability and delivery timing for your chosen configuration.

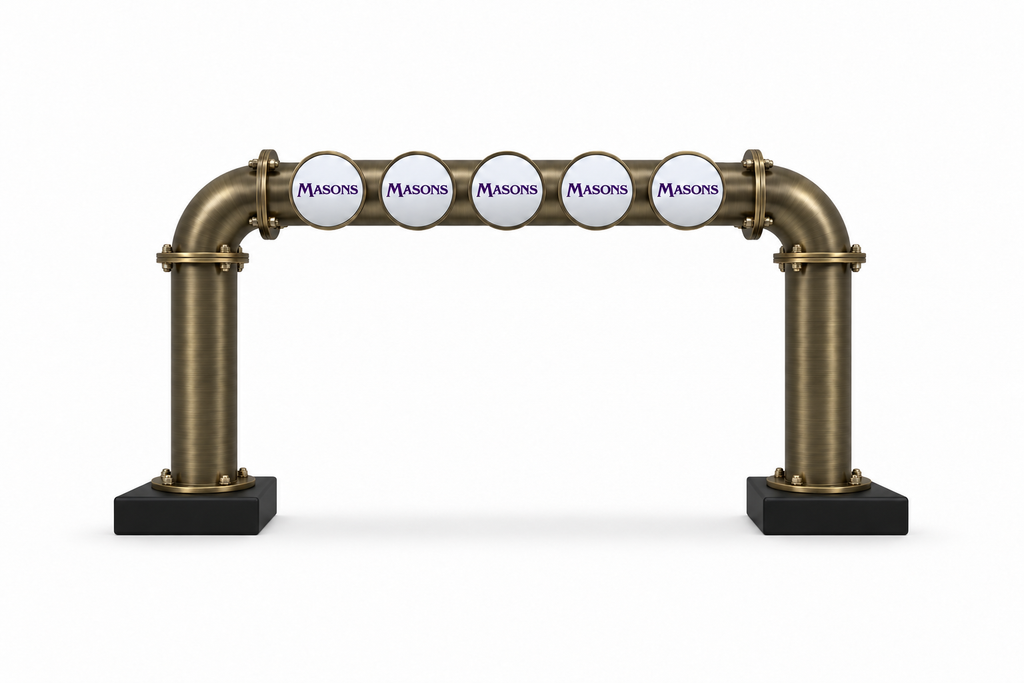

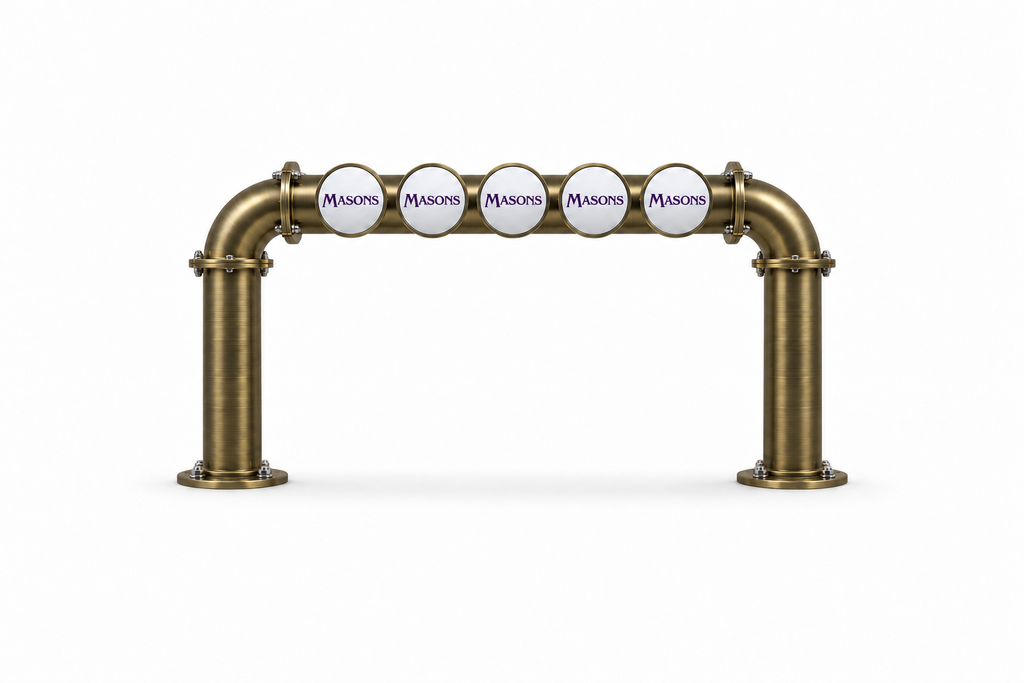

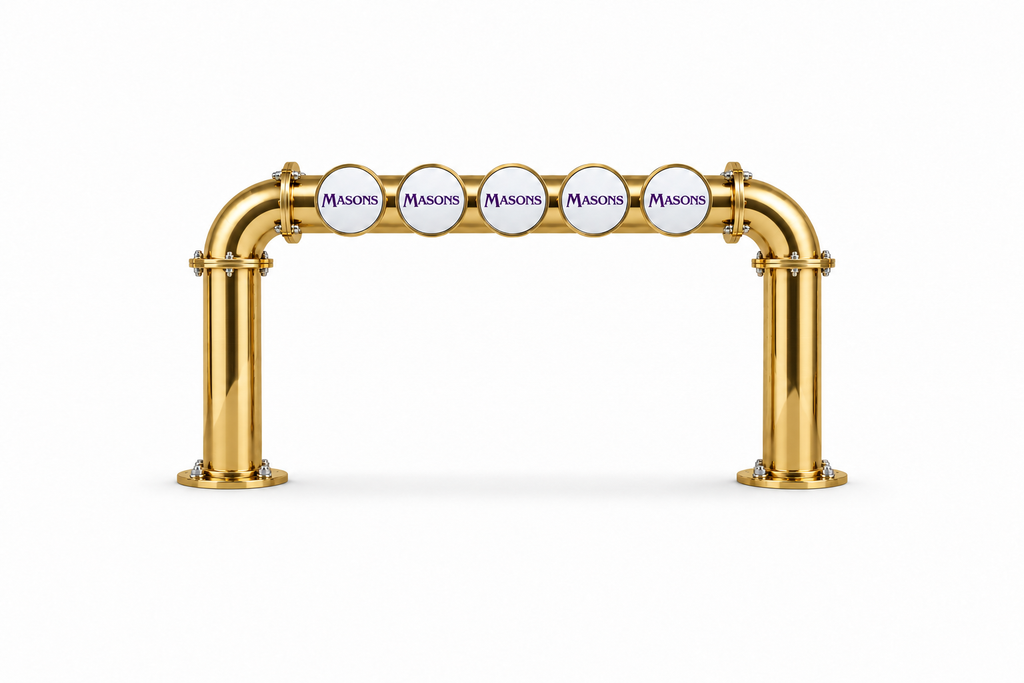

Photographs show example finishes and configurations. Use the product selectors to specify your finish, mounting, beer-line size and taps.
Compare sizes and installation options in our Brewhouse Bridge buying guide.
Other Brewhouse Bridge sizes
This page is for the 5-way model. Compare the other outlet counts: 4-way bridge · 6-way bridge · 8-way bridge · 10-way bridge · 12-way bridge · 16-way bridge.
Need help specifying your bridge? Call Harry Mason on 0121 328 5900.
