Brewhouse 3-Way T-Bar Beer Font
The Harry Mason Brewhouse 3-Way T-Bar Beer Font is a multi-line draught beer tower for 3 dispense lines, with circular beer badge holders across its horizontal bar. Configure the finish, mounting, beer-line size and taps for your pub, bar or brewery installation.
Choose your 3-way T-bar configuration
- Mounting: Through the Bar or Clamp On.
- Beer line: 3/16-inch or 5/16-inch.
- Taps: No Tap, Prestige Classic Tap Matching Handle, Compensator Tap, or Compensator with Nozzle.

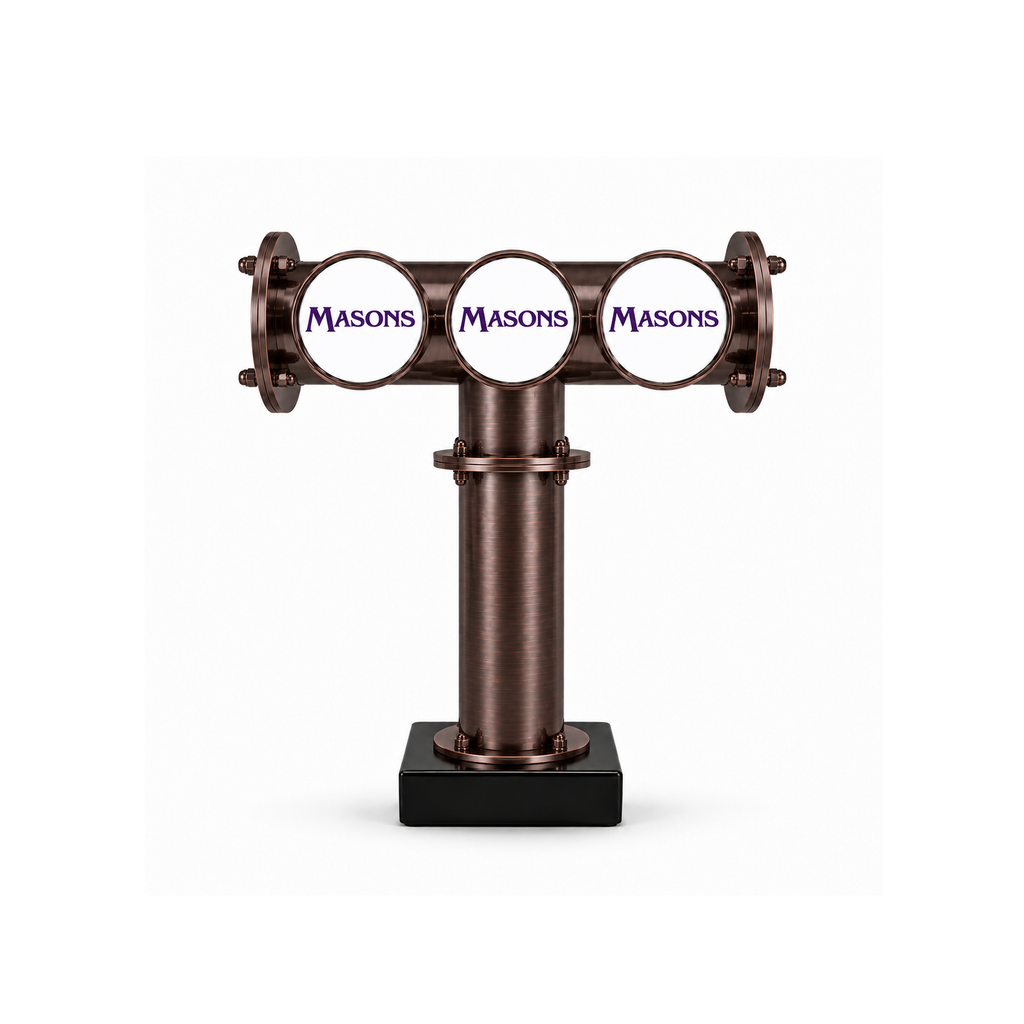

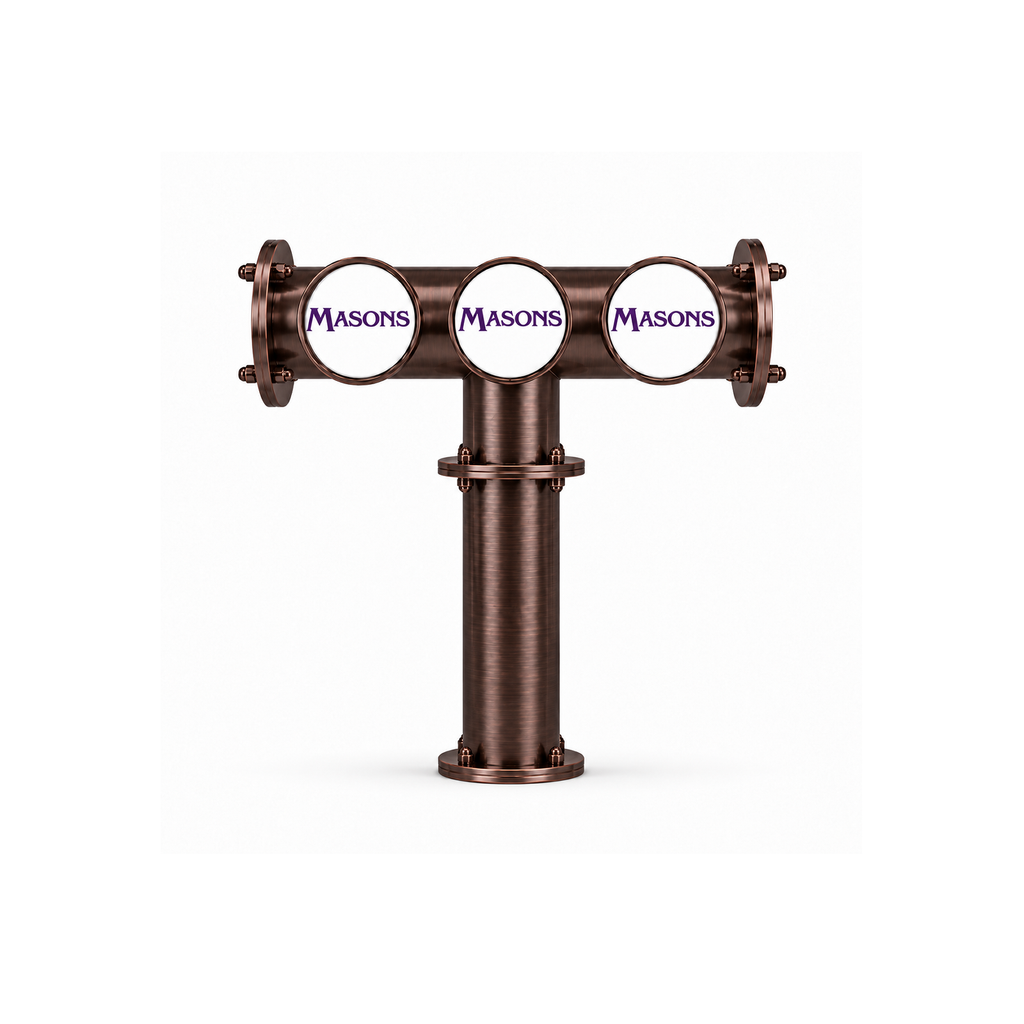

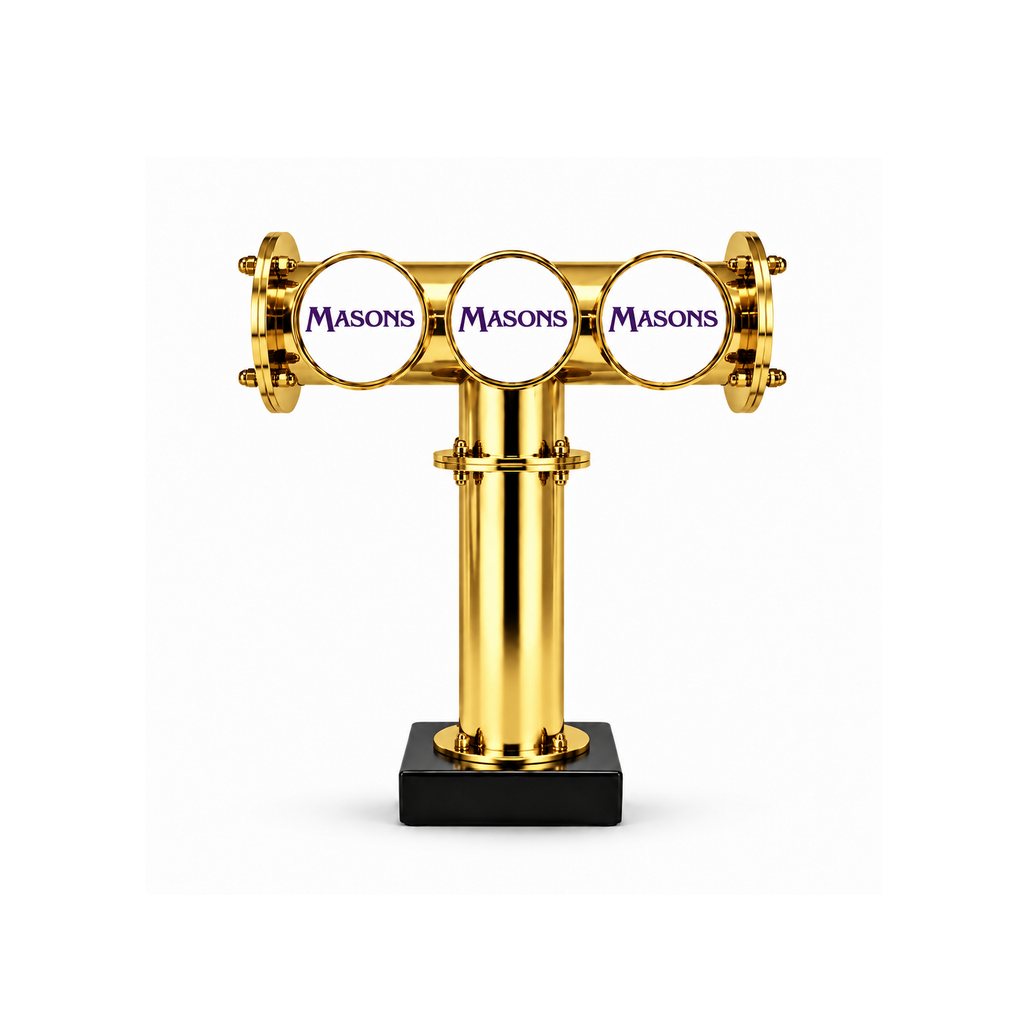

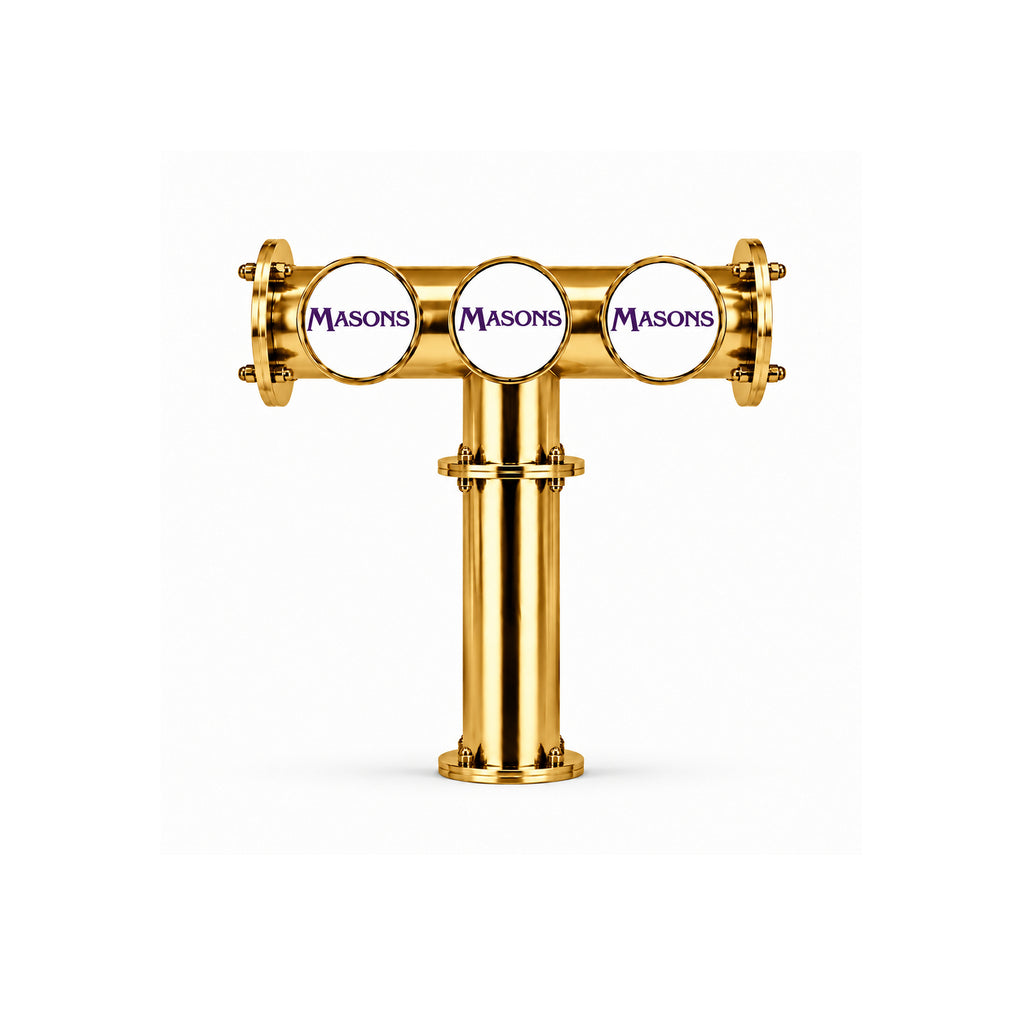

Select the finish, combined mounting and beer-line option, then the tap option to see your configuration and price. No Tap means dispense taps are not included. Gallery photographs show example configurations; the options you select determine the product ordered.
Finishes and branding

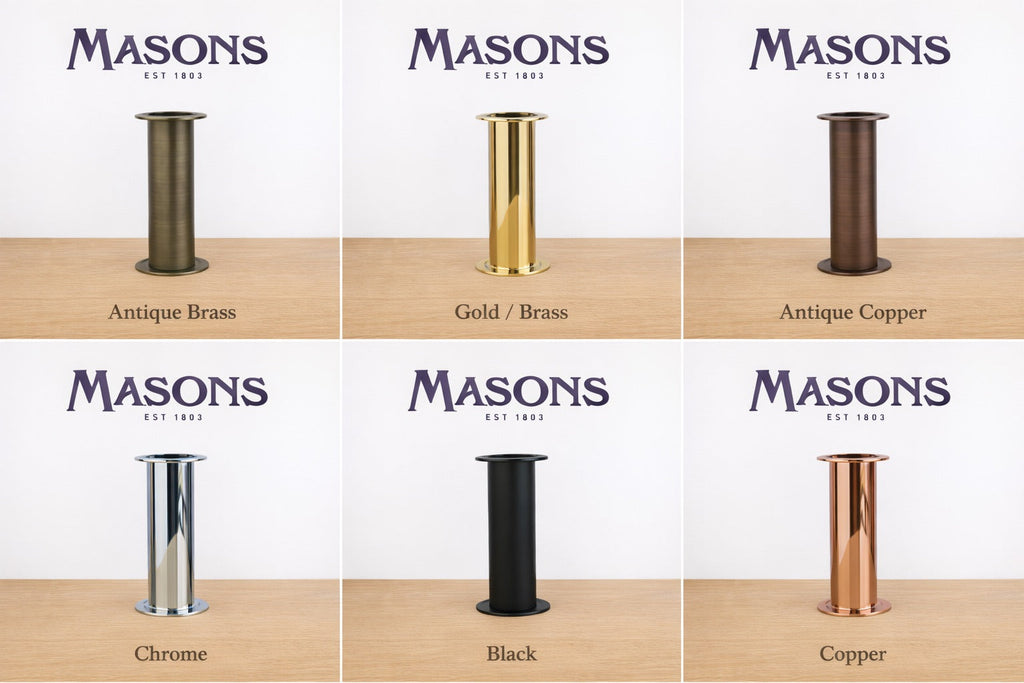

Currently selectable finishes for this 3-way listing: Chrome, Gold, Copper, Black, Antique Brass, Antique Copper / Bronze. The gallery's colour chart illustrates the wider Brewhouse finish range. If your preferred finish appears in the chart or example photos but not the selector, contact us to check availability.
For brewery or venue branding, ask about beer badge/lens requirements. Photographed branding is illustrative; confirm the lens, lighting and power-supply package required for your order.
What is included?
- T-Bar font in your selected finish, mounting and beer-line configuration.
- Drip tray with the mounting components applicable to the selected installation.
- The tap configuration selected when ordering. No Tap excludes dispense taps.
Dimensions and installation

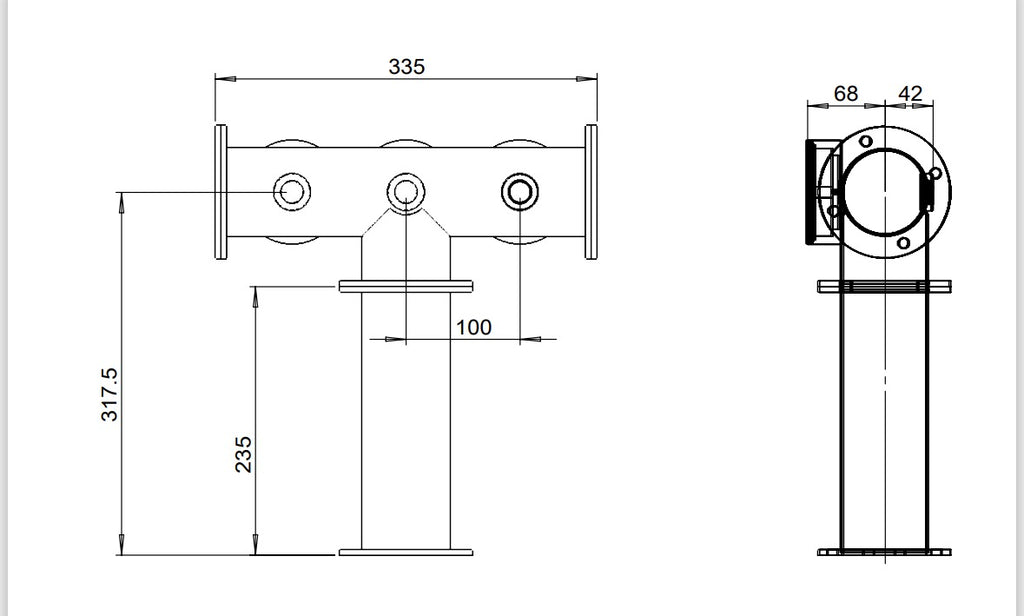

All dimensions are in millimetres. The drawing shows the through-the-bar version. Clamp-on mounting raises the tower by 50 mm above the bar top.
| Measurement | Through the Bar | Clamp On |
|---|---|---|
| Bar top to outlet centreline | 317.5 mm | 367.5 mm |
| Bar top to upper stem flange datum | 235 mm | 285 mm |
| Horizontal span shown on drawing | 335 mm | 335 mm |
| Outlet spacing | 100 mm | 100 mm |
The outlet centreline measurement is not the overall height of the font, badge holders or taps. The 335 mm span is the dimension marked on the drawing; allow for fitted taps, badge holders and drip-tray clearances.
View or save the Harry Mason 3-way Brewhouse T-bar through-the-bar dimension drawing (JPG). The clamp-on assembly is not illustrated in this drawing; use the clamp-on vertical dimensions in the table above.
Check bar-top space, mounting, dispense-line size and tap choice before ordering. Contact us to confirm mounting and drip-tray clearances, supplied fittings, cooling connections and electrical requirements for your configuration.
For a reduced-height central support design, compare Brewhouse Lowrider T-Bars. For a twin-support bridge design, see Brewhouse Bridges.
Compare Brewhouse T-bar sizes
Choose the number of dispense lines your bar needs: 3-way T-bar, 4-way T-bar, 5-way T-bar, 6-way T-bar, 7-way T-bar. For smaller pillar towers, see our Alpha, Beta and Gamma beer font comparison.
Lead time, warranty and finish care
Lead time: up to 12 working days.
Warranty: 1 year, subject to our terms and conditions. Damage to plating caused by abrasive cleaners or abrasive cleaning materials is not covered.
Do not use abrasive cleaners or abrasive cleaning materials on plated finishes.
