Brewhouse Lowrider 4-Way Drinks Tower
Brewhouse Lowrider 4-Way Beer Tower – Stylish & Versatile Draught Beer Dispensing
Lead time, warranty and finish care
Lead time: up to 12 working days.
Warranty: 1 year, subject to our terms and conditions. Damage to plating caused by abrasive cleaners or abrasive cleaning materials is not covered.
Finish care: do not use abrasive cleaners or abrasive cleaning materials on plated finishes.

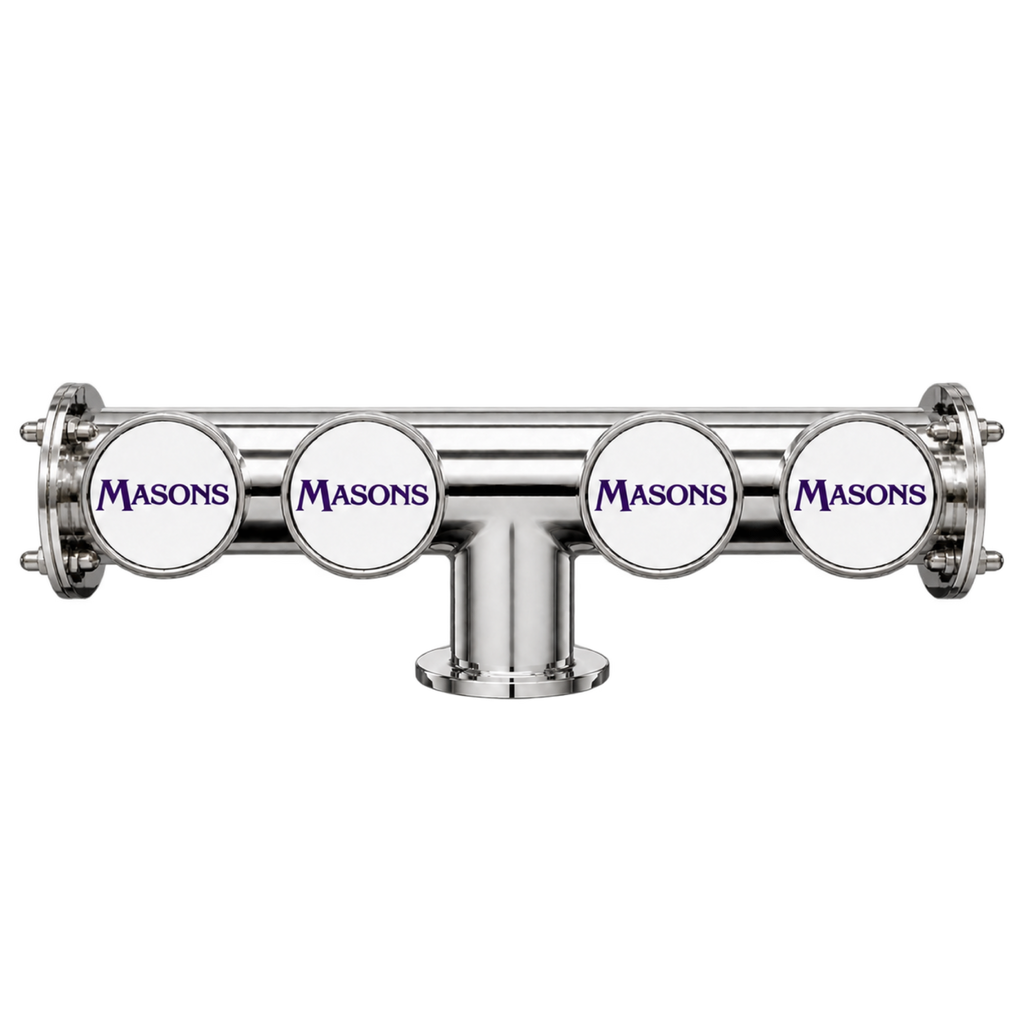

Enhance your bar with the Brewhouse Lowrider 4-Way Beer Tower, a sleek and modern beer dispensing solution designed for pubs, bars, restaurants, and breweries. Combining sophisticated aesthetics with outstanding performance, this 4-tap beer tower is perfect for venues looking to serve multiple beers while maintaining a stylish, professional setup.

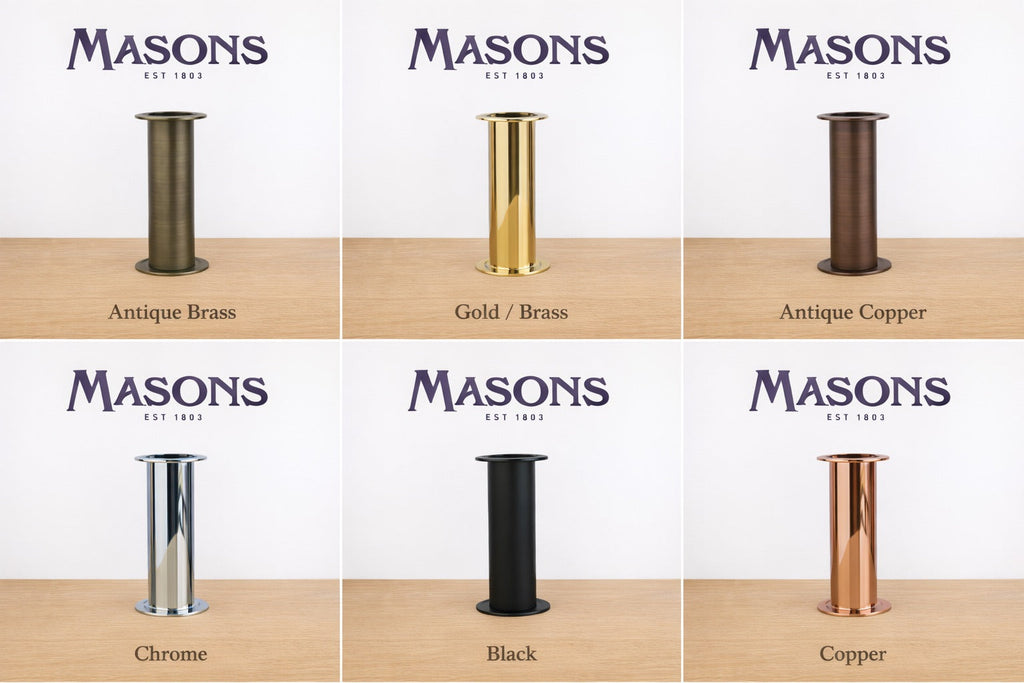

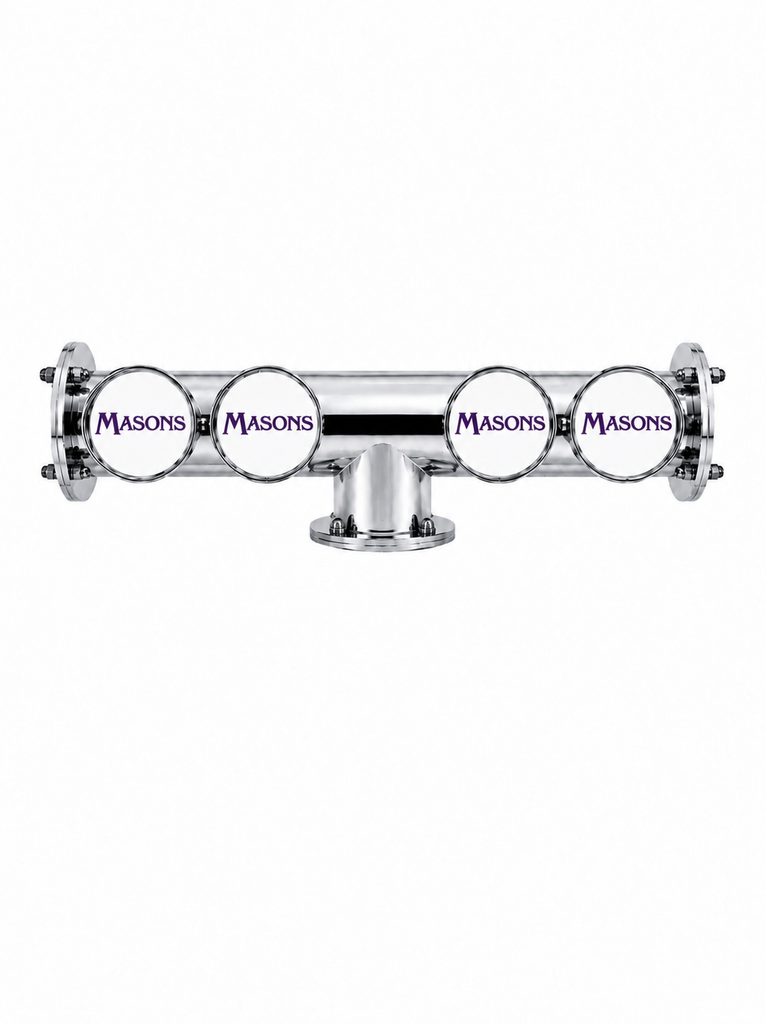

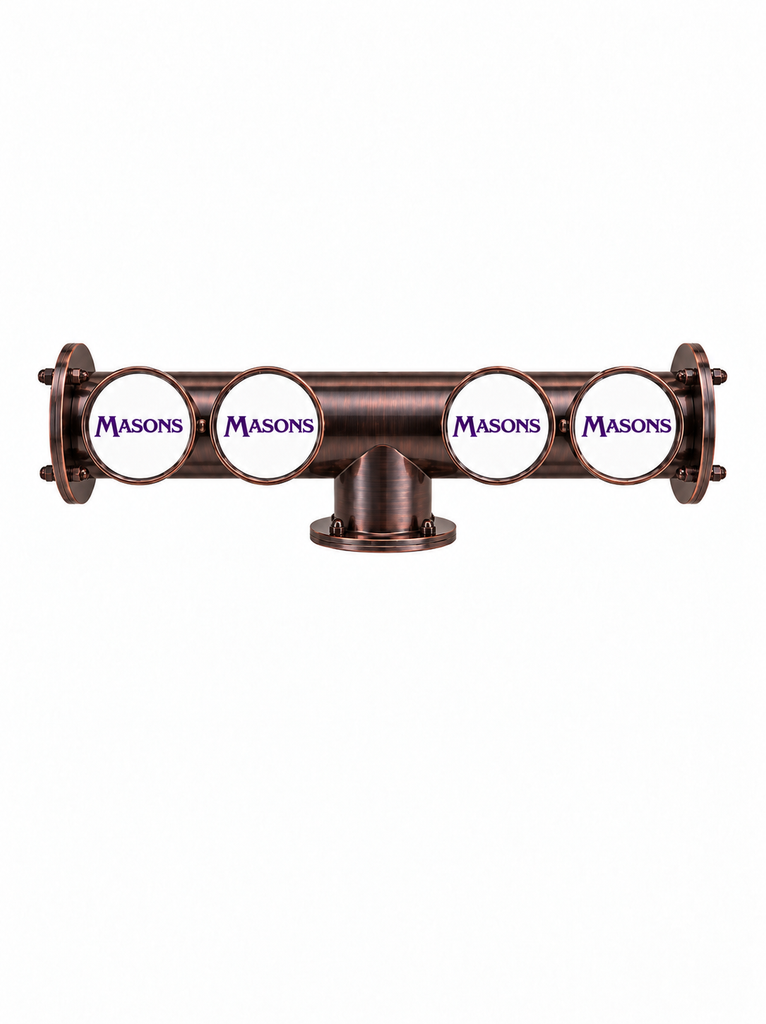

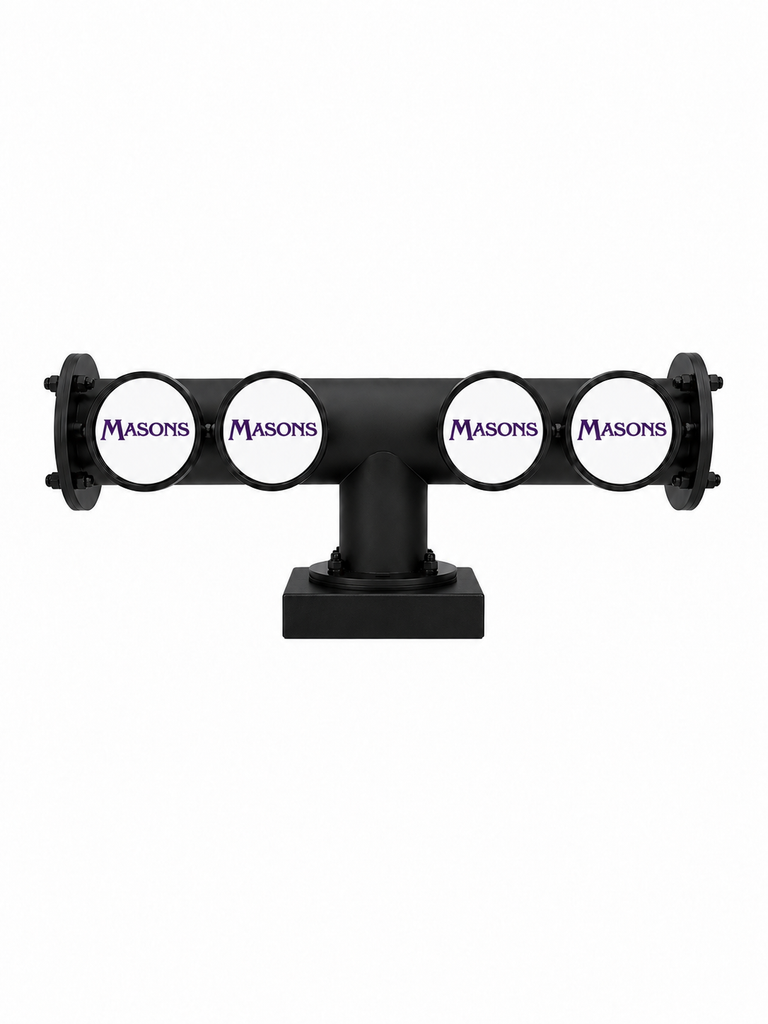

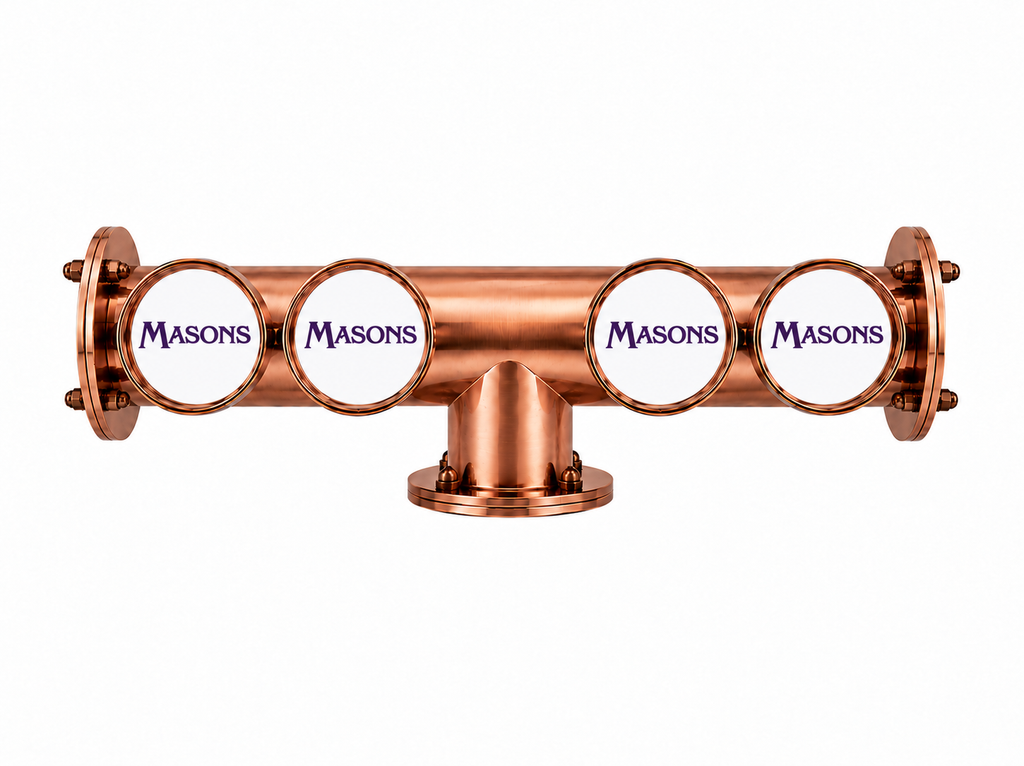

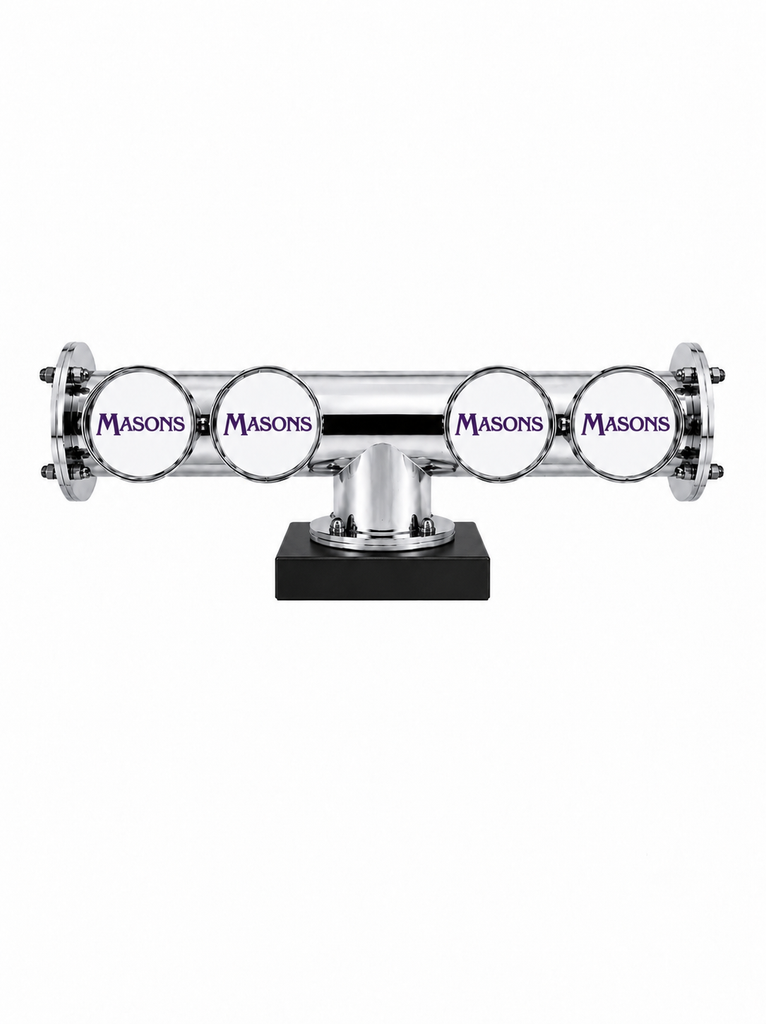

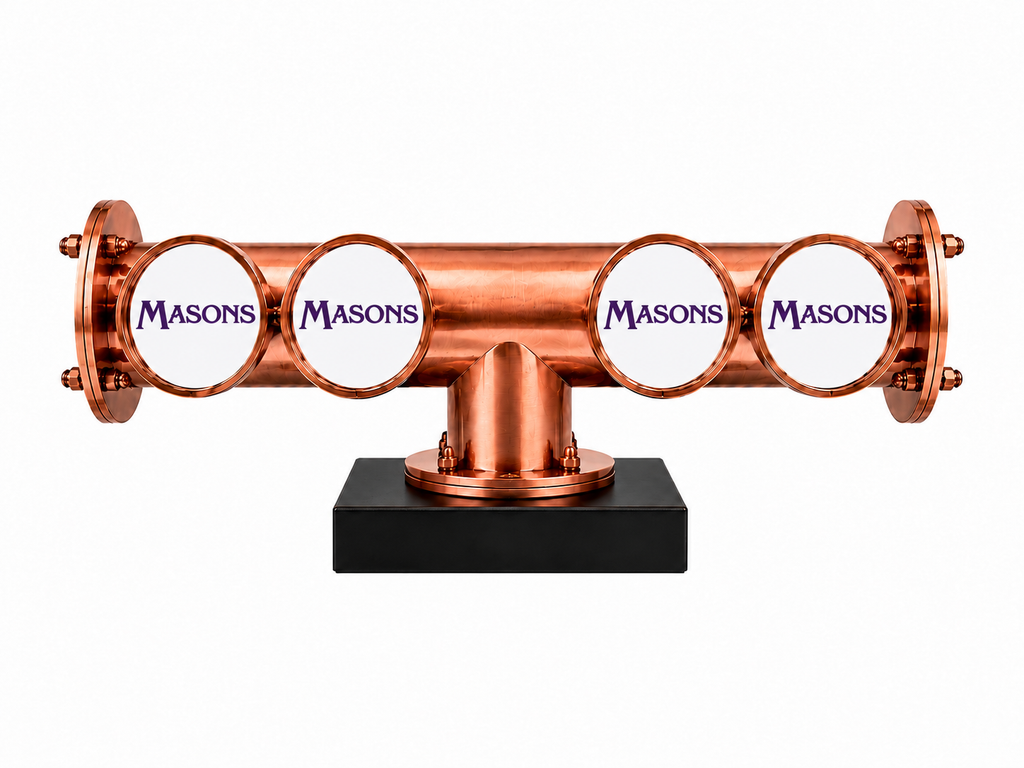

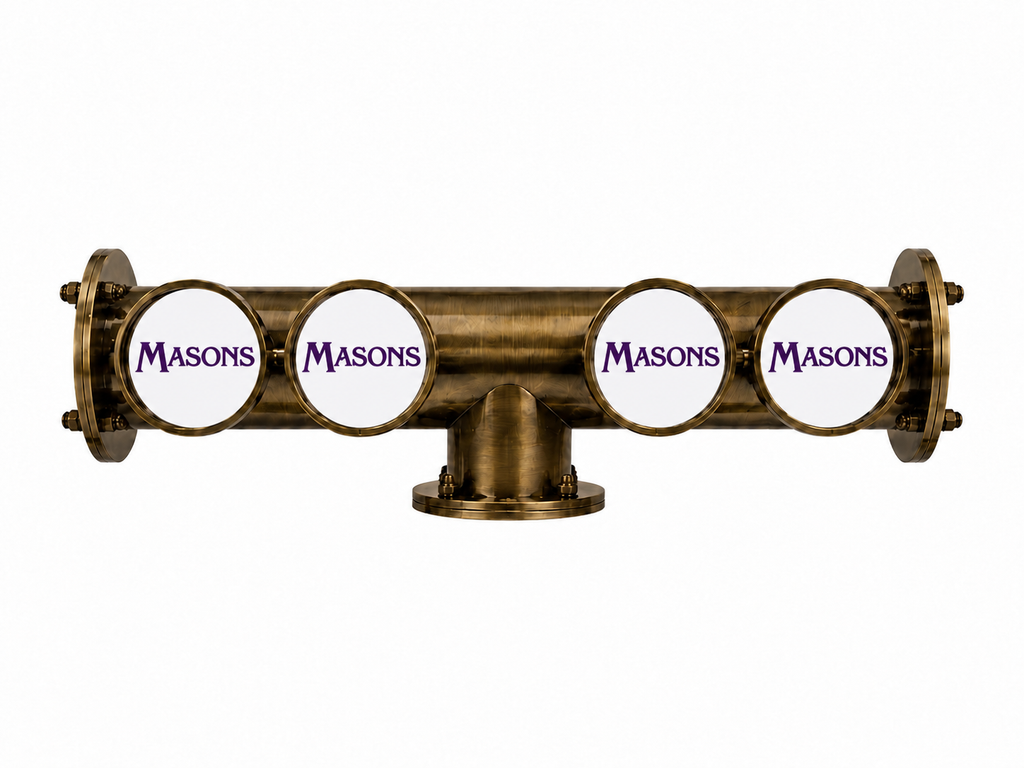

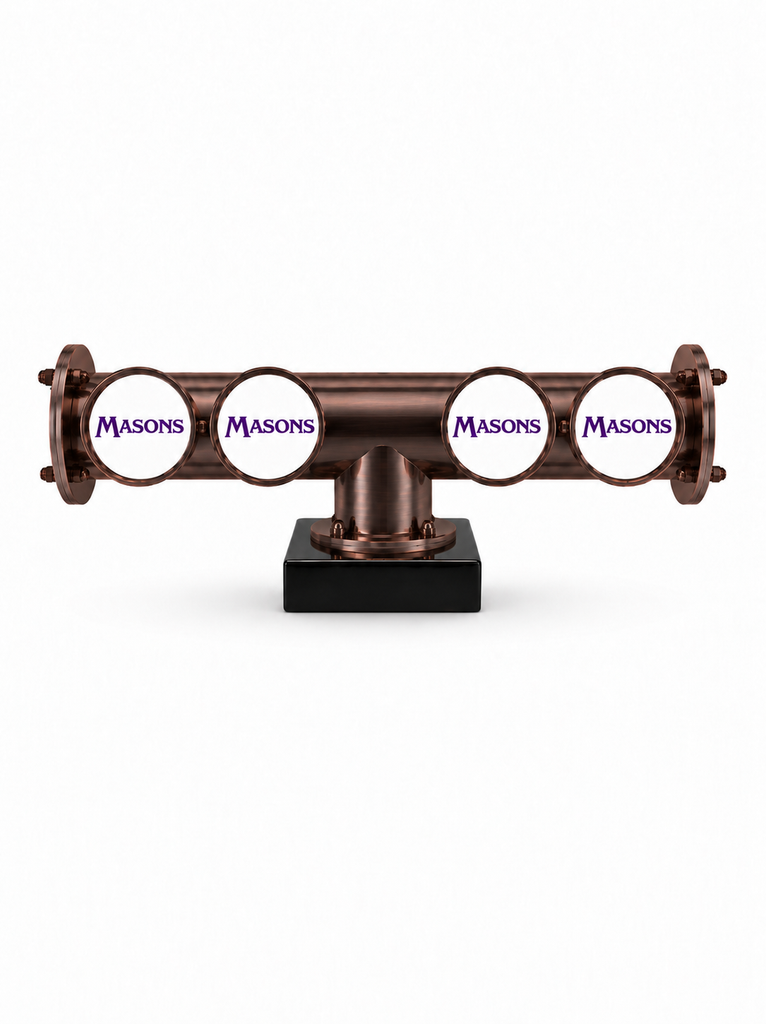

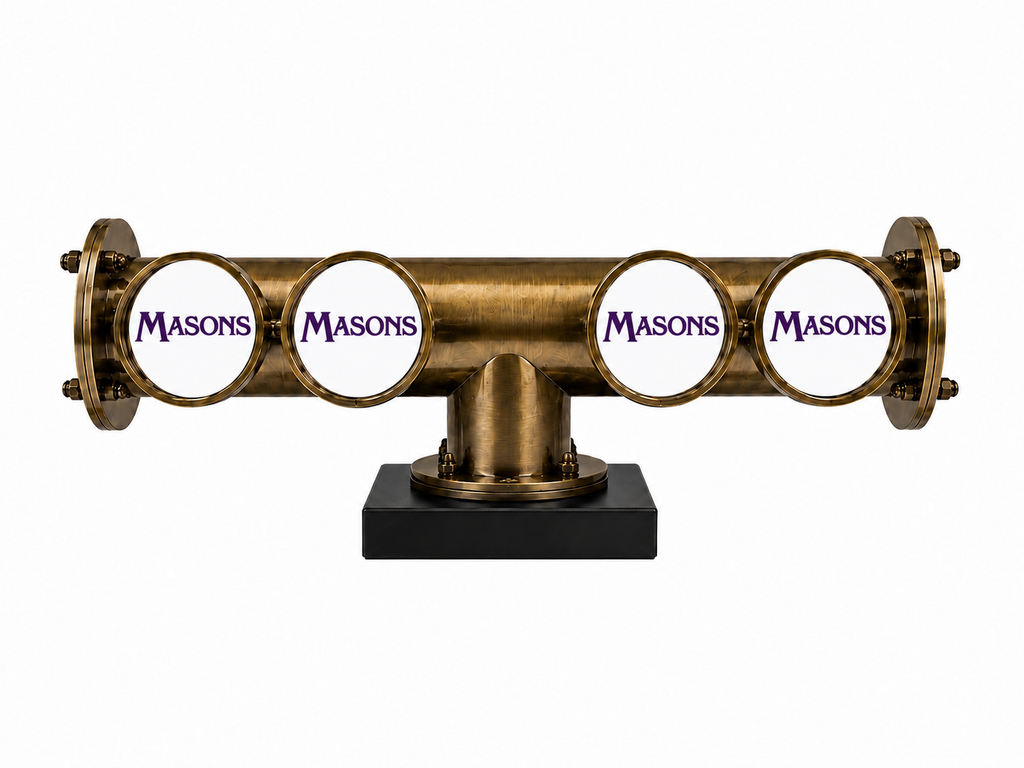

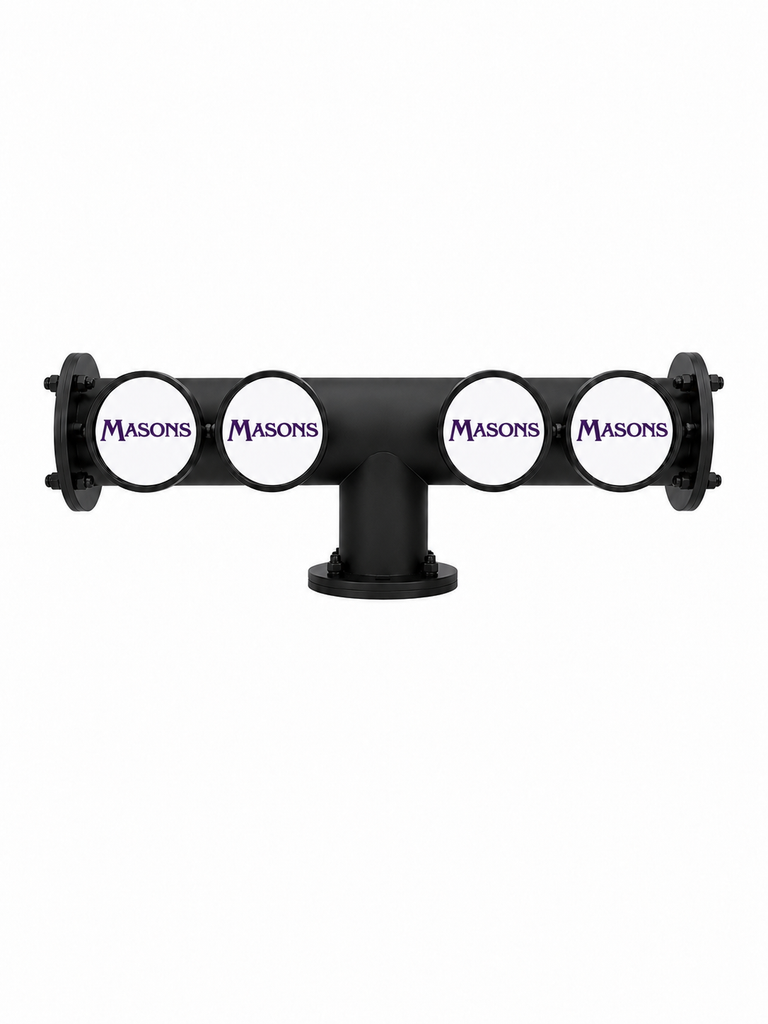

For flexible installation, the Brewhouse Lowrider 4-Way Beer Tower is available in both clamp-on and through-the-counter variations, making it easy to integrate into any bar layout. Choose from polished chrome, brushed stainless steel, or custom colours to perfectly match your décor. Plus, add custom taps and branding to create a unique and professional look.
Engineered for smooth and efficient beer dispensing, this 4-way beer tower ensures consistent, high-quality pours for craft beers, lagers, and ales. Its space-saving design and premium construction make it a durable, stylish, and practical choice for any venue.
Upgrade your draught system with the Brewhouse Lowrider 4-Way Beer Tower—a versatile, high-performance, and visually striking addition to your bar.

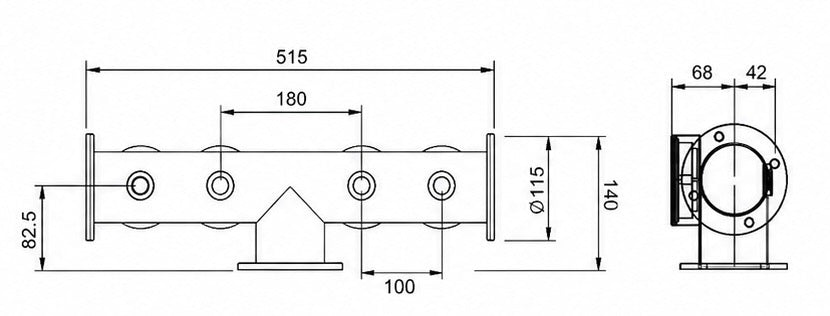

4-way Lowrider dimensions
All dimensions are in millimetres. Through-the-bar dimensions are taken from the supplied Lowrider drawing. Clamp-on heights include the previously specified 50 mm mounting base.
| Measurement | Through the Bar | Clamp On |
|---|---|---|
| Bar top to outlet centreline | 82.5 mm | 132.5 mm |
| Overall font height shown (excluding fitted taps) | 140 mm | 190 mm |
| Horizontal span | 515 mm | 515 mm |
| Outer adjacent outlet spacing | 100 mm | 100 mm |
| Centre outlet spacing across mounting position | 180 mm | 180 mm |
| Horizontal end flange diameter | 115 mm | 115 mm |
| Side-view offset to one side of centreline | 68 mm | 68 mm |
| Side-view offset to opposite side of centreline | 42 mm | 42 mm |
Allow additional clearance for fitted taps, badge holders and drip trays. The drawing shows the through-the-bar font.
