Brewhouse Lowrider 7-Way T-Bar Beer Font
The 7-way Brewhouse Lowrider T-Bar is a reduced-height beer font with 7 dispense outlets arranged across a horizontal bar on one central support. It offers a lower-profile alternative to the standard Brewhouse T-Bar.
Choose your configuration
- Finish: Chrome, Copper, Antique Brass, Antique Copper/Bronze, Gold, Black.
- Mounting: through-the-bar or clamp-on.
- Beer line: 3/16-inch or 5/16-inch, chosen within the mounting selector.
- Taps: No Tap, Prestige Classic Tap Matching Handle, Compensator with Nozzle, or Compensator Tap.
Choose the finish, combined mounting and beer-line option, then the tap option. No Tap means dispense taps are not included. The displayed price is for the selected configuration.
Photographs and branding

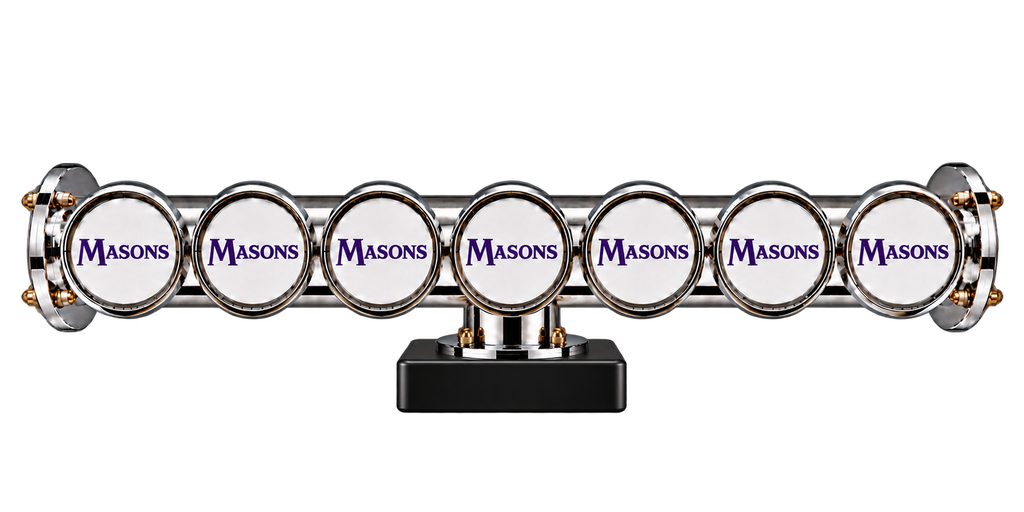

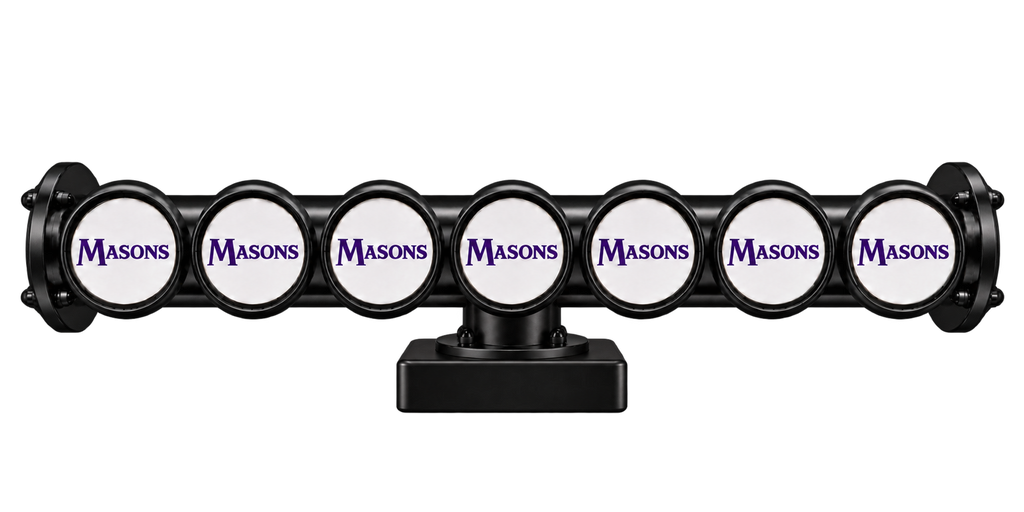

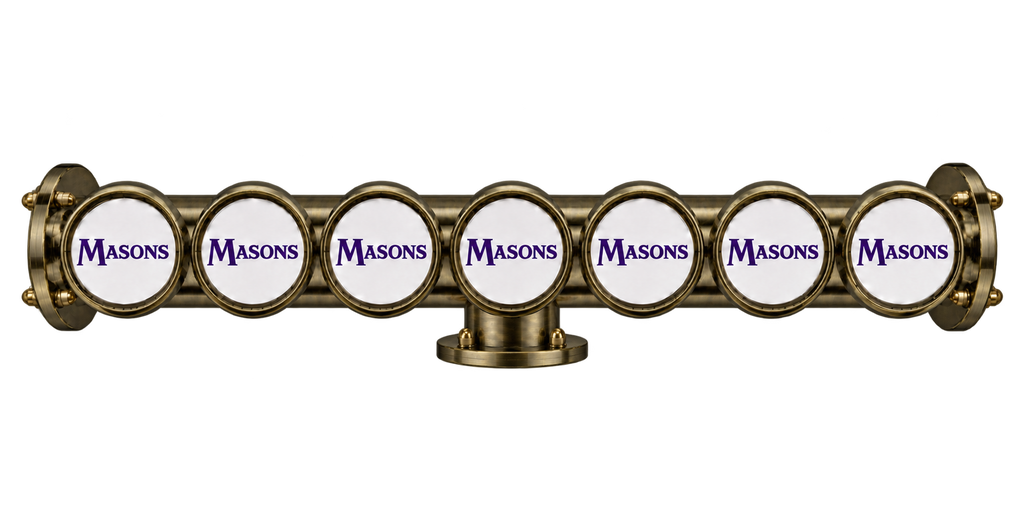

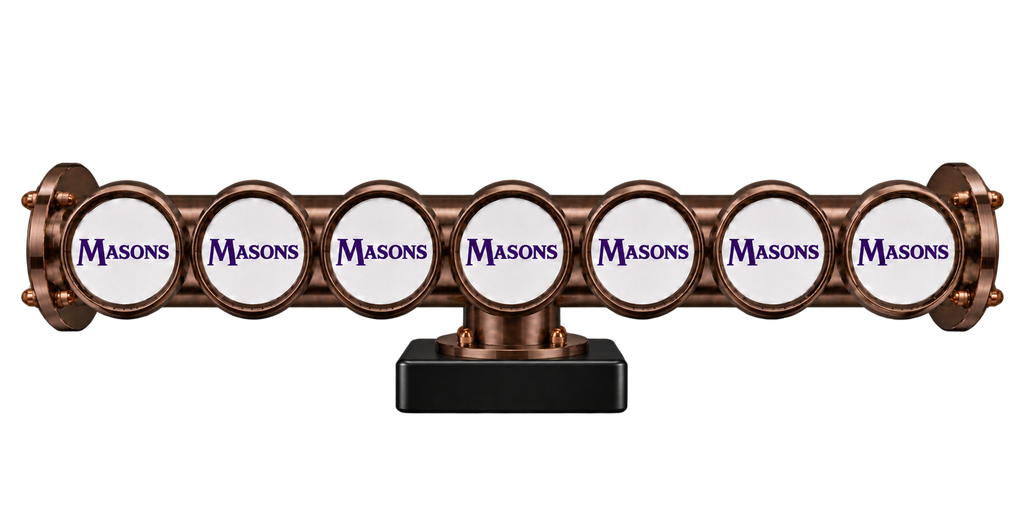

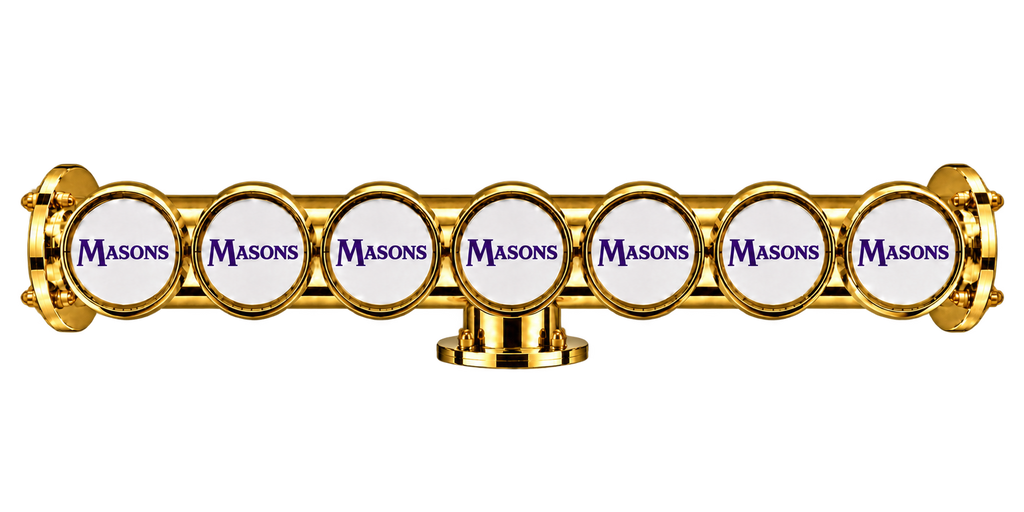

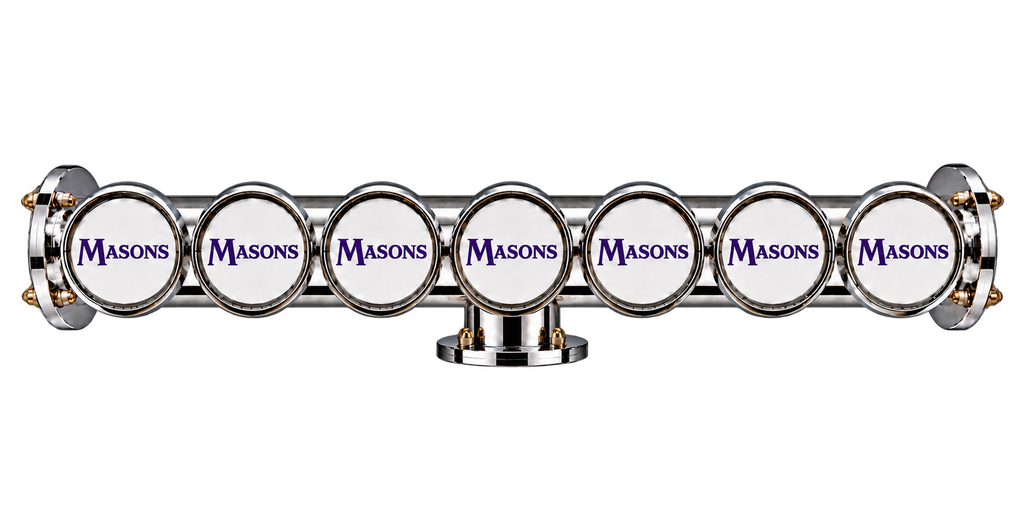

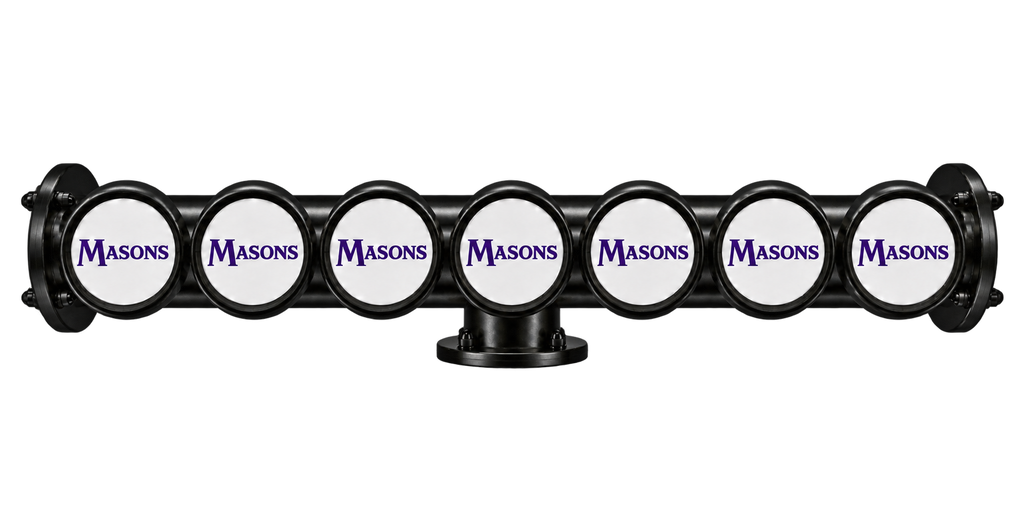

Images show example finishes and mounting arrangements, sometimes without taps or handles so the font body is visible. Order using the product selectors. Contact Harry Mason about custom branding, lens requirements, lighting and the appropriate power supply for your installation.
What is included?
- T-Bar font in your selected finish, mounting and beer-line configuration.
- Drip tray with the mounting components applicable to the selected installation.
- The tap configuration selected when ordering. No Tap excludes dispense taps.
7-way Lowrider dimensions
All dimensions are in millimetres. Through-the-bar dimensions are taken from the supplied Lowrider drawing. Clamp-on heights include the previously specified 50 mm mounting base.
| Measurement | Through the Bar | Clamp On |
|---|---|---|
| Bar top to outlet centreline | 82.5 mm | 132.5 mm |
| Overall font height shown (excluding fitted taps) | 140 mm | 190 mm |
| Horizontal span | 735 mm | 735 mm |
| Outer adjacent outlet spacing | 100 mm | 100 mm |
| Horizontal end flange diameter | 115 mm | 115 mm |
| Side-view offset to one side of centreline | 68 mm | 68 mm |
| Side-view offset to opposite side of centreline | 42 mm | 42 mm |
Allow additional clearance for fitted taps, badge holders and drip trays. The drawing shows the through-the-bar font.
Compare T-Bar sizes and designs
3-way Lowrider T-Bar · 4-way Lowrider T-Bar · 5-way Lowrider T-Bar · 6-way Lowrider T-Bar. View all Lowrider T-Bars or compare the twin-support Lowrider Bridges.
For mounting advice, clearance checks and branding enquiries, call 0121 328 5900.
Lead time, warranty and finish care
Lead time: up to 12 working days.
Warranty: 1 year, subject to our terms and conditions. Damage to plating caused by abrasive cleaners or abrasive cleaning materials is not covered.
Finish care: do not use abrasive cleaners or abrasive cleaning materials on plated finishes.
